Au SAE J1939 Simulators (Gen II)
Ver 1.00A releases and Ver 2.00A releases
SIMJ1939_Gen_II_ON

The Au SAE J1939 simulators (Gen II, includes V1.00A releases and V2.00A releases) can generate SAE J1939 signal for up to three controller applications (CA): Engine, ABS and Transmission. Au J1939 simulators are designed so easy to use, even product line operator and sales personal can use them without Controller Area Network training. Au J1939 simulator can run all by itself and doesn't require complicate software settings or user's knowledge and experience on Controller Area Network. It is widely used as valuable tools for any situation from product-line test, incoming inspection, business demonstration to product development and product validation.

Introduction of Au J1939 Simulator

Au SAE J1939 simulators with most updated firmware (FW 0.1D, 0.1E, 0.1F, 0.2D, 0.2E, 0.2F) supoort multiple CAN Baud Rate, Device CAN Baud Rate can be set at 250K, 500K, 62.5K, 125K, or 1M bps.

How to change the CAN Baud Rate of Au J1939 Simulator

Au SAE J1939 Simulators (Gen II) 1.00A
Au SAE J1939 Simulator-Gen II 1.00A (Value Package Edition)
Part#: SIMJ1939-013        Price: $260.00 (USD)
Au SAE J1939 Simulator-Gen II 1.00A (Engine Basic Edition)
Part#: SIMJ1939-001        Price: $660.00 (USD)
Au SAE J1939 Simulator-Gen II 1.00A (Engine Premium Edition)
Part#: SIMJ1939-002        Price: $1160.00 (USD)
Au SAE J1939 Simulator-Gen II 1.00A (Vehicle Platinum Edition)
Part#: SIMJ1939-003        Price: $1760.00 (USD)
Au SAE J1939 Simulator-Gen II 1.00A (Value Package Plus Edition)
Part#: SIMJ1939-014        Price: $560.00 (USD)
Au SAE J1939 Simulator-Gen II 1.00A (Engine Basic Plus Edition)
Part#: SIMJ1939-004        Price: $960.00 (USD)
Au SAE J1939 Simulator-Gen II 1.00A (Engine Premium Plus Edition)
Part#: SIMJ1939-005        Price: $1460.00 (USD)
Au SAE J1939 Simulator-Gen II 1.00A (Vehicle Platinum Plus Edition)
Part#: SIMJ1939-006        Price: $2060.00 (USD)
Au SAE J1939 Simulator-Gen II 1.00A (Engine Basic Script Edition)
Part#: SIMJ1939-017        Price: $1760.00 (USD)
Au SAE J1939 Simulator-Gen II 1.00A (Engine Premium Script Edition)
Part#: SIMJ1939-018        Price: $2260.00 (USD)
Au SAE J1939 Simulator-Gen II 1.00A (Vehicle Platinum Script Edition)
Part#: SIMJ1939-019        Price: $2860.00 (USD)
A 12-month firmware updating service and riority technical support for Au SAE J1939 Simulator
Service#: SVS-SIM-J1939        Price: $500.00 (USD)

Note: SVS-SIM-J1939 can be purchased in one-year increments or purchased at any time, it is not necessary to purchase continuously.


Au SAE J1939 Simulators (Gen II) 2.00A Releases
Au SAE J1939 Simulator-Gen II 2.00A (Engine Basic Edition)
Part#: SIMJ1939-007        Price: $2660.00 (USD)
Au SAE J1939 Simulator-Gen II 2.00A (Engine Premium Edition)
Part#: SIMJ1939-008        Price: $3160.00 (USD)
Au SAE J1939 Simulator-Gen II 2.00A (Vehicle Platinum Edition)
Part#: SIMJ1939-009        Price: $3760.00 (USD)
Au SAE J1939 Simulator-Gen II 2.00A (Engine Basic Plus Edition)
Part#: SIMJ1939-010        Price: $2960.00 (USD)
Au SAE J1939 Simulator-Gen II 2.00A (Engine Premium Plus Edition)
Part#: SIMJ1939-011        Price: $3460.00 (USD)
Au SAE J1939 Simulator-Gen II 2.00A (Vehicle Platinum Plus Edition)
Part#: SIMJ1939-012        Price: $4060.00 (USD)
Au SAE J1939 Simulator-Gen II 2.00A (Engine Basic Script Edition)
Part#: SIMJ1939-020        Price: $3760.00 (USD)
Au SAE J1939 Simulator-Gen II 2.00A (Engine Premium Script Edition)
Part#: SIMJ1939-021        Price: $3460.00 (USD)
Au SAE J1939 Simulator-Gen II 2.00A (Vehicle Platinum Script Edition)
Part#: SIMJ1939-022        Price: $4060.00 (USD)
1 year support and minor upgrades for Au SAE J1939 Simulator
Service#: SVS-SIM-J1939        Price: $200.00 (USD)

Au SAE J1939 Simulator (Gen II) Accessories
CAN Cable (pigtail)
6-wire CAN/J1708 Cable for DB9 Male Connector, 3 feet length
Part #: CBL-CAN-485-01      Price: $14.99 USD

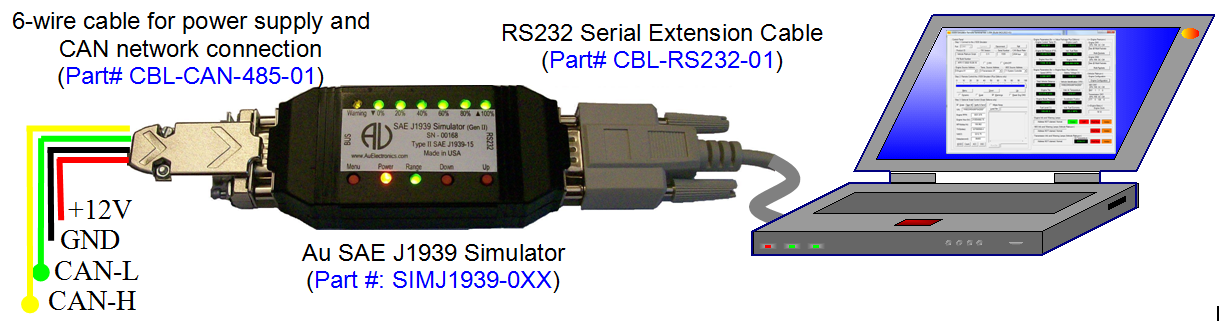

RS232 Serial Extension Cable
RS232 Serial Extension Cable
Part #: CBL-RS232-01        Price: $8.99 USD

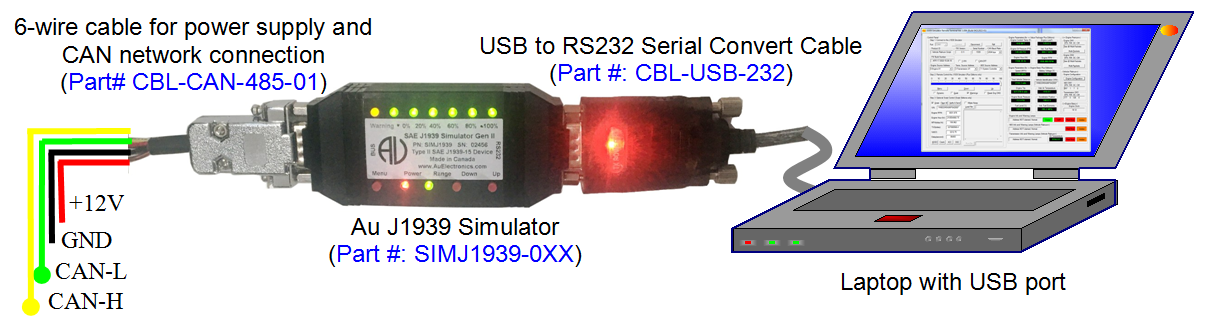

USB to RS232 Converter Cable
Part #: CBL-USB-232        Price: $15.99 USD
Au CAN/J1708 Cable with a DB9 female connector, dual SAE 9-way receptacles and power jacket
Part #: CBL-CAN-485-02D        Price: $48 USD
Au J1708/CAN cable with a DB9 female connector and double SAE J-Bus connectors.
Au J1708/CAN cable with a DB9 female connector and double SAE J-Bus connectors.
Part #:CBL-CAN-485-03GD       Price: $85 USD

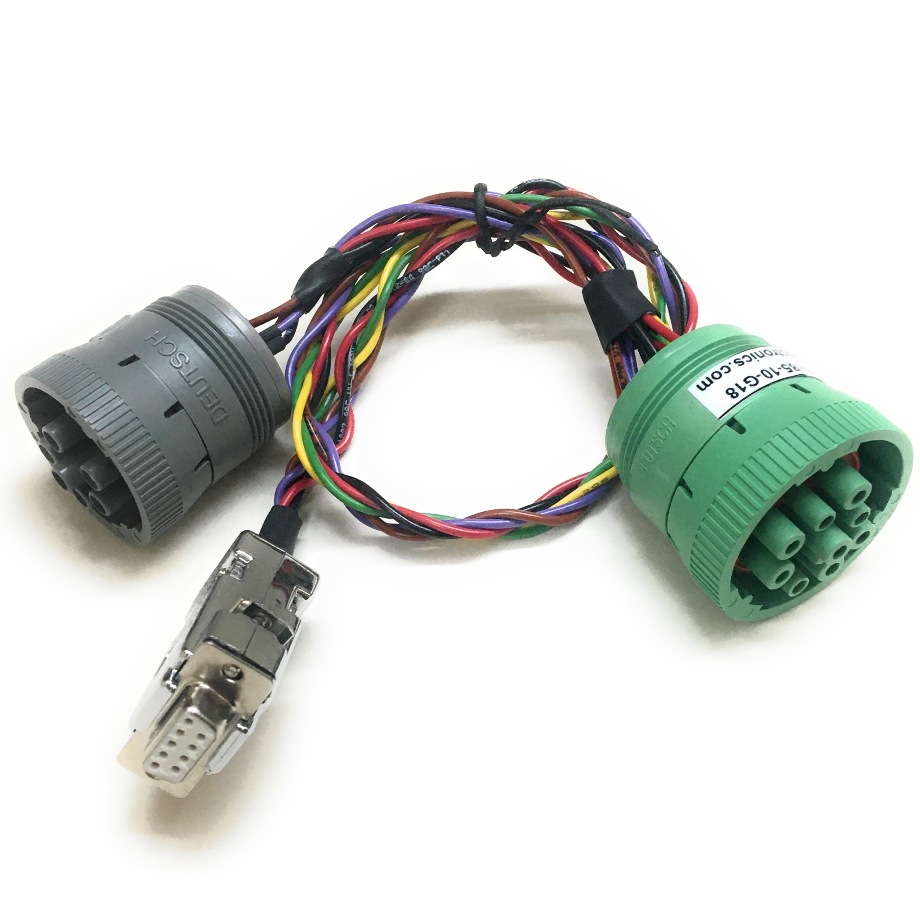

Au J1708/CAN cable with a DB9 female connector and double SAE J-Bus connectors, twisted wires, 12 inch length.
Au J1708/CAN cable with a DB9 female connector and double SAE J-Bus connectors, twisted wires, 12 inch length.
Part #:CBL-CAN-485-10-G       Price: $75 USD
PWR-912V-CP

Wall Mount AC/DC Power Supply - Positive Center
Part#: PWR-912V-CP      Price: $18.99 (USD)

Au Off-highway 9-pin Caterpillar (Non-SAE) Y Cable
Part #: CBL-CAT9-06        Price: $75 USD
Note: All Accessories MUST be ordered separately.
Note:

All Accessories MUST be ordered separately.

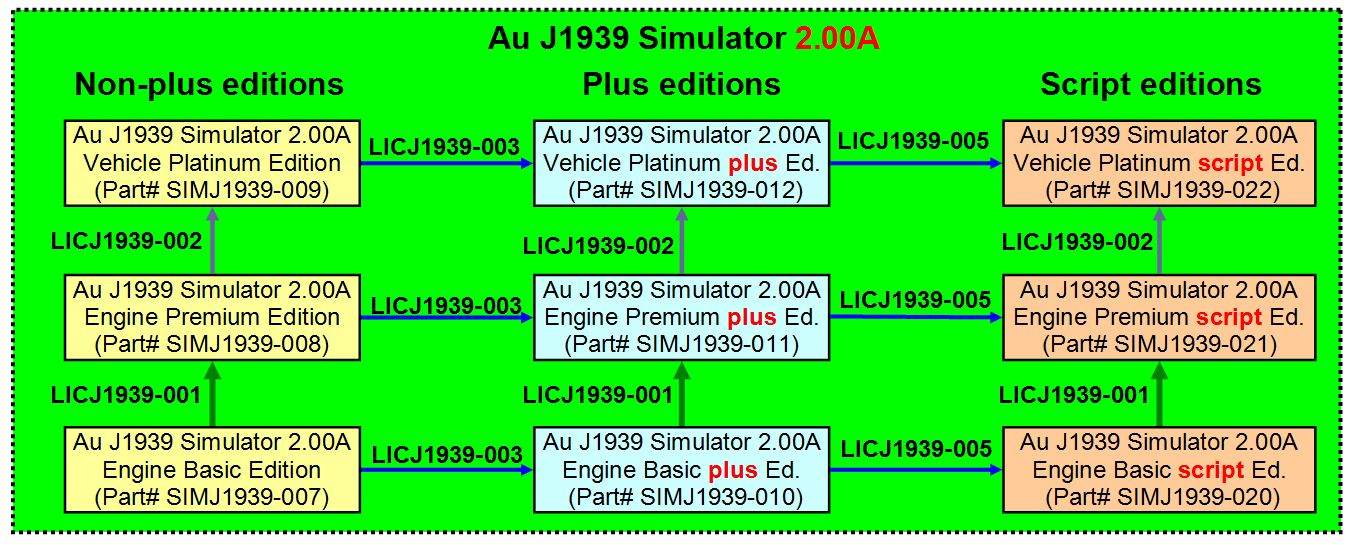

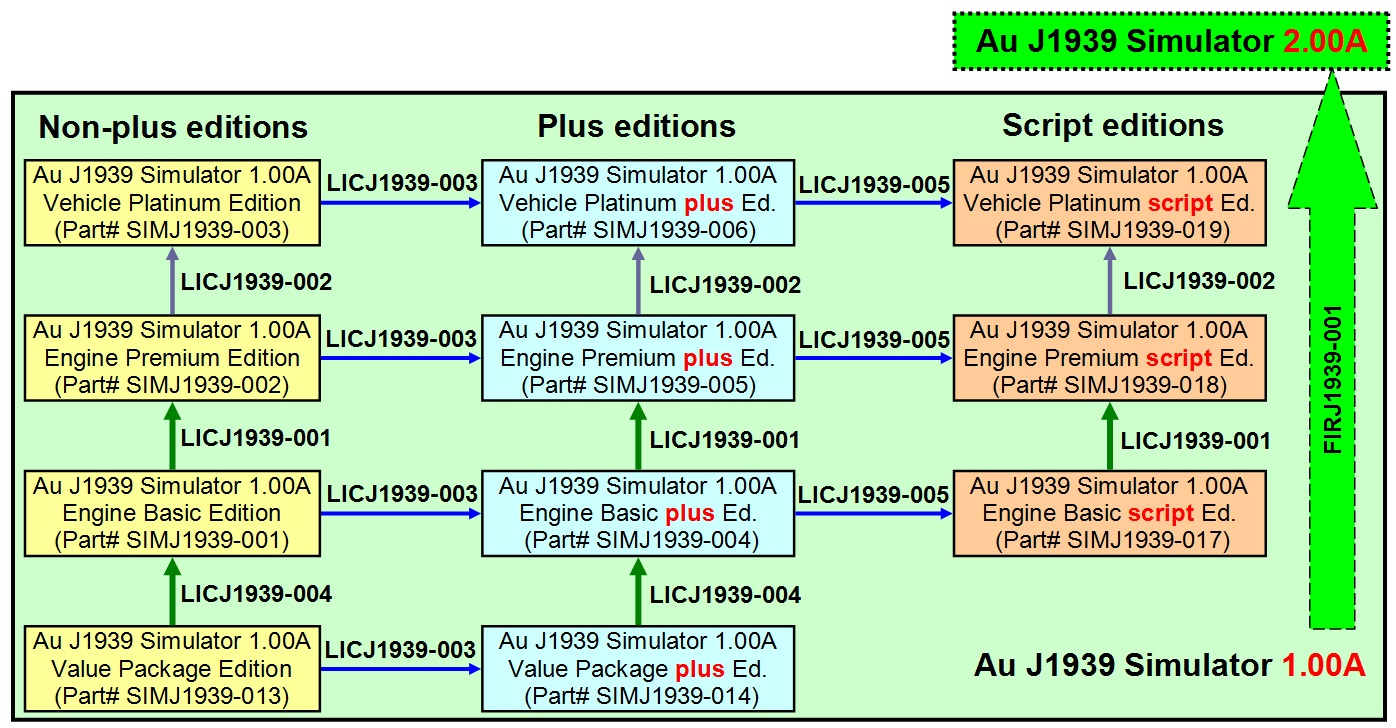

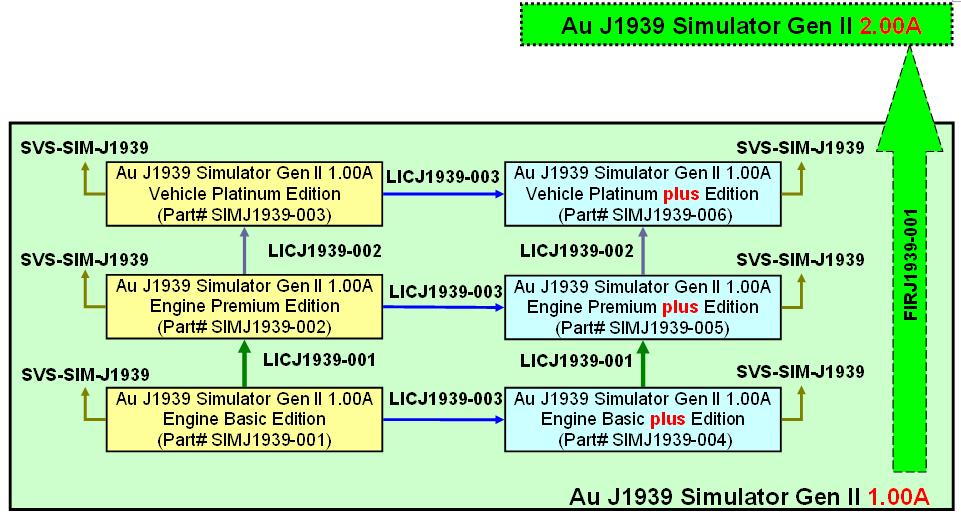

Au J1939 Simulators License Upgrade and Major Firmware Upgrade
License Upgrade from Engine Basic Edition(s) to Engine Premium Edition(s)
Upgrade License Order #: LICJ1939-001        Price: $500.00 (USD)
License Upgrade from Engine Premium (s) to Vehicle Platinum Edition(s)
Upgrade License Order #: LICJ1939-002        Price: $600.00 (USD)
License Upgrade from non-PLUS Edition(s) to PLUS Edition(s)
Upgrade License Order #: LICJ1939-003        Price: $300.00 (USD)
License Upgrade from Value Package Edition(s) to Engine Basic Edition(s)
Upgrade License Order #: LICJ1939-004        Price: $400.00 (USD)
License Upgrade from Plus Edition(s) to Script Edition(s)
Upgrade License Order #: LICJ1939-005        Price: $800.00 (USD)
Au J1939 simulator Firmware Upgrade from 1.00A to 2.00A
Upgrade Firmware Order #: FIRJ1939-001        Price: $2000.00 (USD)

Twenty editions of J1939 simulator are now available to meet different customer needs.

There are eleven editions of the Au SAE J1939 simulators for 1.00A release available

Au SAE J1939 Simulator 1.00A

Part#

Non-Plus Edition

Au SAE J1939 Simulator 1.00A(Value Package Edition)

SIMJ1939-013

Au SAE J1939 Simulator (Engine Basic< 1.00A/strong> Edition)

SIMJ1939-001

Au SAE J1939 Simulator 1.00A (Engine Premium Edition)

SIMJ1939-002

Au SAE J1939 Simulator 1.00A (Vehicle Platinum Edition)

SIMJ1939-003

Plus Edition

Au SAE J1939 Simulator 1.00A (Value Package Plus Edition)

SIMJ1939-014

Au SAE J1939 Simulator 1.00A (Engine Basic Plus Edition)

SIMJ1939-004

Au SAE J1939 Simulator 1.00A (Engine Premium Plus Edition)

SIMJ1939-005

Au SAE J1939 Simulator 1.00A (Vehicle Platinum Plus Edition)

SIMJ1939-006

Script Edition

Au SAE J1939 Simulator 1.00A(Engine Basic Script Edition)

SIMJ1939-017

Au SAE J1939 Simulator 1.00A (Engine Premium Script Edition)

SIMJ1939-018

Au SAE J1939 Simulator 1.00A (Vehicle Platinum Script Edition)

SIMJ1939-019


There are nine editions of the Au SAE J1939 simulators 2.00A available.

Au SAE J1939 Simulator 2.00A

Part#

Non-Plus Edition

Au SAE J1939 Simulator 2.00A (Engine Basic Edition)

SIMJ1939-007

Au SAE J1939 Simulator 2.00A (Engine Premium Edition)

SIMJ1939-008

Au SAE J1939 Simulator 2.00A (Vehicle Platinum Edition)

SIMJ1939-009

Plus Edition

Au SAE J1939 Simulator 2.00A (Engine Basic Plus Edition)

SIMJ1939-010

Au SAE J1939 Simulator 2.00A (Engine Premium Plus Edition)

SIMJ1939-011

Au SAE J1939 Simulator 2.00A (Vehicle Platinum Plus Edition)

SIMJ1939-012

Script Edition

Au SAE J1939 Simulator 2.00A (Engine Basic Script Edition)

SIMJ1939-020

Au SAE J1939 Simulator 2.00A (Engine Premium Script Edition)

SIMJ1939-021

Au SAE J1939 Simulator 2.00A (Vehicle Platinum Script Edition)

SIMJ1939-022

Major updates for FW 0.1G, 0.1H, 0.1I, 0.2G, 0.2H, 0.2I:

  • CAN bus on-off switch for all editions
  • One-VIN on-off switch for all editions
  • Configurable CAN baud rate for all editions
  • Configurable source address for all editions

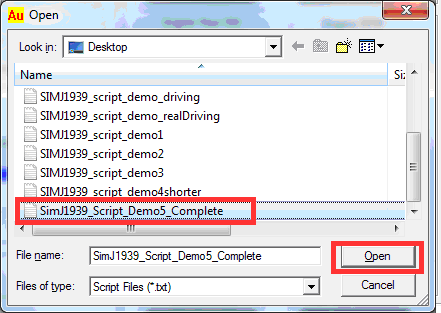

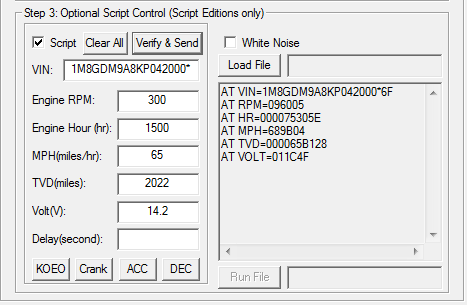

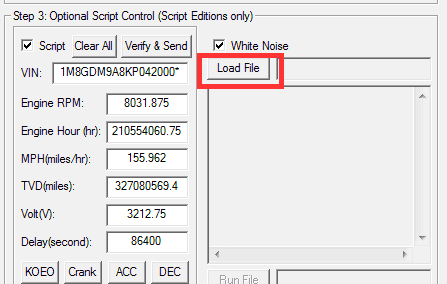

  • Script control capabilities on 6 ELD parameters: Engine RPM, Vehicle speed, VIN, Battery voltage, Engine hour, Total vehicle distance, available for Script editions.

Major updates for FW 0.1D, 0.1E & 0.1F :

  • VIN is supported by Au J1939 Simulator 1.00A (FW 0.1D, 0.1E, 0.1F), 2.00A (FW 0.2D, 0.2E, 0.2F) Engine Basic and above editions.
  • This release addresses the parameters reuired by the ELD mandate. To get his feature, previous firmware can be upgraded to new firmware of FW 0.1D/0.1E/0.1F with a purchase of Service#: SVS-SIM-J1939. May-12-2017

  • CAN bus baud rate is field adjustable (1M/500K/250K/125K/62.5K bps).
  • SAE only recommend 500K and 250K bps CAN bus baud rate. To get his feature, Previous firmware can be upgrade to new firmware of FW 0.1D/0.1E/0.1F (for previous 0.1A/0.1B/0.1C user) or FW 0.2D/0.2E/0.2F (for previous 0.2A/0.2B/0.2C user) with a purchase of Service#: SVS-SIM-J1939. May-12-2017

Major updates from 1.00A to 2.00A

Au J1939 simulator firmware version check feature is added on Remote Terminal and a "warning message" will be issued when firmware doesn't match the minimum requirement for Remote Terminal. Only release 2.00A and Above firmware (current firmware ID: 0.2A) can be used with the 2.00A Remote Terminal release.

Following parameters are added to all 2.00A editions for GenSet and Marine Industry (5 items):

  • Engine Oil Temperature
  • Engine Fuel Temperature
  • Engine Oil Level
  • Engine Coolant Pressure
  • Engine Coolant Level

Following shutdown functions related parameters are added to all 2.00A editions (18 ):

  • Engine Idle shutdown (IS) has shutdown engine;
  • Engine IS Driver Alert Mode
  • Engine IS Timer Override
  • Engine IS Timer State
  • Engine IS Timer Function
  • A/C High Pressure Fan Switch
  • Refrigerant Low Pressure Switch
  • Refrigerant High Pressure Switch
  • Engine Wait to Start Lamp
  • Engine Protection System (EPS) has shutdown Engine
  • EPS Approaching Shutdown
  • EPS Timer Override
  • EPS Timer State
  • EPS Configuration
  • Engine Alarm Acknowledge
  • Engine Alarm Output Command Status
  • Engine Air Shutoff Command Status
  • Engine Overspeed Test

Following Inlet and Exhaust Condition related parameters are added to all all 2.00A editions (2):

  • Engine Air Inlet Pressure
  • Engine Exhaust Gas Temperature

Following parameters are added to all all 2.00A editions for emission test purpose (9 items):

  • Actual Engine Percent Torque
  • Nominal Friction Percent Torque
  • Engine Exhaust Gas Recirculation (EGR) Mass Flow Rate (MFR)
  • Engine Inlet Air Mass Flow Rate (MFR)
  • Vehicle Identification Number (VIN)
  • SAE-J1939 Transport Protocol: TP.CM.BAM, TP.DT
  • SAE-J1939 Transport Protocol: TP.CM.RTS, TP.CM.CTS, TP.DT, TP.CM.EndOfMsgACK, TP.Conn.Abort

Major updates from Gen I to Gen II

  • Most recent edition is Gen II Ver 2.00A (Firmware Ver 0.2A). The Gen II Ver 1.00A is still available as an economic solution.
  • All Gen II Ver 1.00A editions have the same software codes as Gen I editions. Both Gen I and Gen II use the same minor and major firmware updates. Both can be upgrade to Ver 2.00A with major Firmware upgrade Order #: FIRJ1939-001.
  • All Gen II editions have the same microcontroller hardware design as Gen I.
  • All Gen II editions now include an enclosure.

Major Hardware Features:

  • SAE J1939-15 Type II ECU, contains an internal 120 ohm load resistor for easy network setup
  • Common-Mode Choke and TVS (Transient Voltage Suppressor) protection on CAN bus
  • Compact size: 4-1/8" L X 1-3/4"W X 7/8"H
  • 9 LED indicators: POWER, RANGE, WARNING, UP+100%, DOWN+0%, 80%, 60%, 40%, 20%, Led will blink when one of these six numeric-specified control point is selected.
  • Enclosure color: Black or PC white
  • 1 Buzzer
  • 3 push buttons: MENU, DOWN, UP, the J1939 signal can be adjusted by push buttons

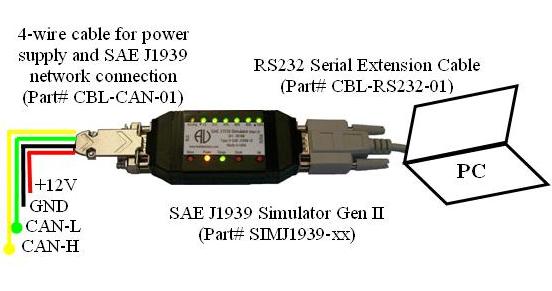

  • 1 RS232 interface for software update, license management and remote control (Plus editions only)
  • 1 DB9 male connector for Power, Ground, CAN_H and CAN_L

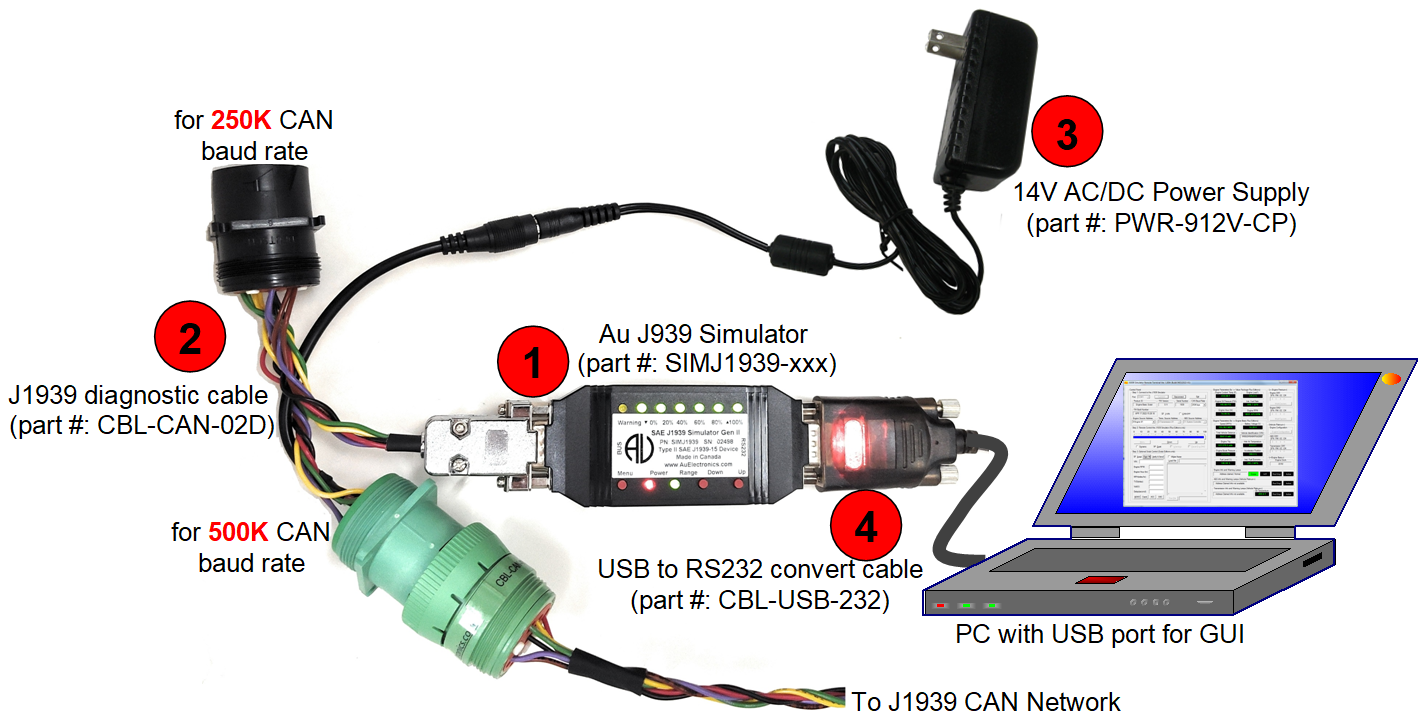

  • Accessory cables are available and must be ordered separately, both RS232 Serial Extension Cable (part #: CBL-RS232-01) and 4-wire CAN Cable for DB9 Male Connector (part #: CBL-CAN-01, which provides power supply and CAN network connection to the simulator) are available and must be ordered separately
  • Power supply: +10V ~ +32VDC, 250 mA max, Nominal voltage: +12V DC or +24V DC
  • Operating temperature: -4 �F to 185 �F (-20 �C to 85 �C)

Major Operating Features:

  • Ease of use - Easy-operate design with production-line-operator and sales person in mind
  • Smart features - Recall last operating mode at power-on, capable of generating dynamic data, etc.
  • STATIC MODE output steady SAE J1939 signal, which can also be adjusted manually
  • DYNAMIC MODE automatically generate dynamic SAE J1939 signal
  • STATIC MODE and DYNAMIC MODE can be easily alternated

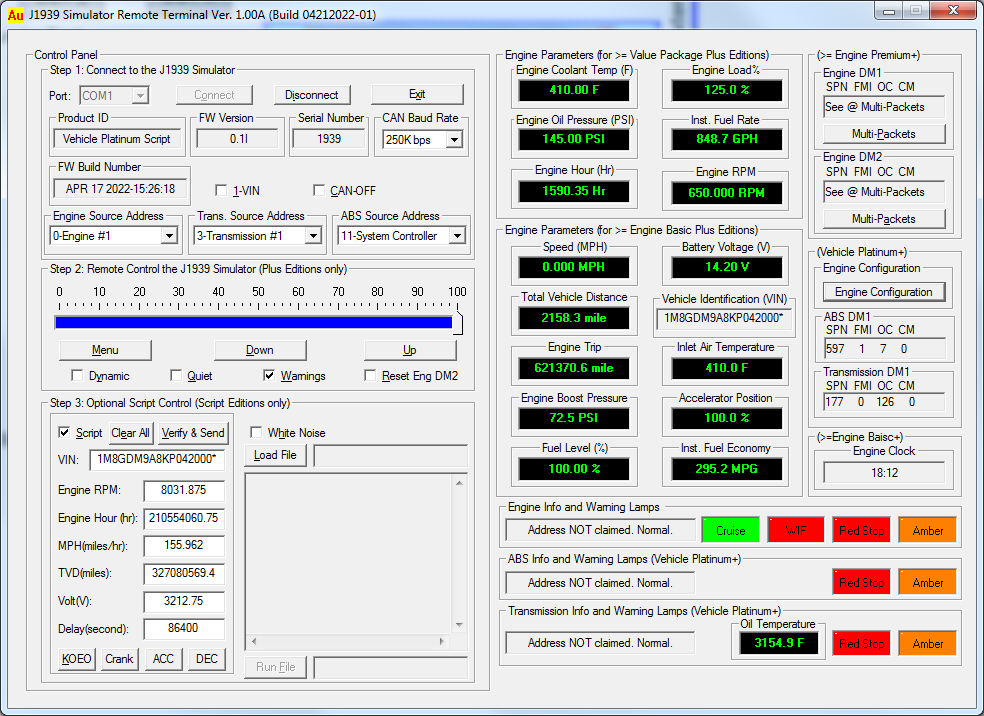

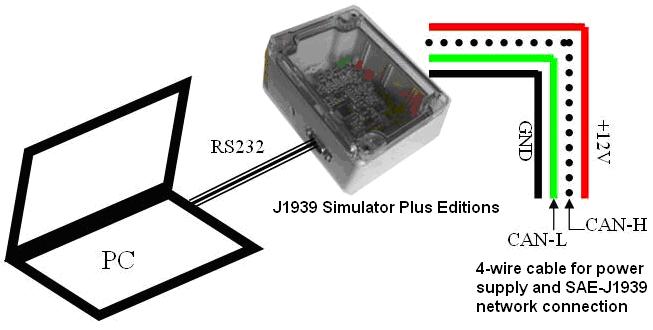

  • PC remote software is available for all "Plus" editions, it can show simulated J1939 signal on a computer screen
  • All Control functions are also available from the PC remote software for all "Plus" editions
  • Easy In-field license upgrade with Au license management tool. For owners with Engine Basic Edition(s) or Engine Premium Edition(s), when more function is needed, the Basic Edition(s) and Premium Edition(s) can be easily upgrade to Platinum Edition(s)
  • In-field software code (firmware) update Capability for minor upgrades (Order #: SVS-SIM-J1939) and major upgrades (Order #: FIRJ1939-001) with Au PIC Bootloader
  • Annual support and minor upgrade services (Order #: SVS-SIM-J1939) are available
  • Major firmware upgrade capability available(e.g. Order #: FIRJ1939-001, upgrade from Ver. 1.00A to Ver. 2.00A)
  • Custom design is available

The Value Package Edition(s) is suitable for those stationary situations which only require minimum Engine operating data, such as Engine RPM, Engine Oil pressure, etc.
The Engine Basic Edition(s) is suitable for those situations which only require normal Engine operating data, such as Engine RPM, Vehicle Speed, Engine Oil pressure, etc.
The Engine Premium Edition(s) is suitable for those situation which also require engine DM1 / DM2 / DM3 warning information and multi-packet communication protocols, etc.
For users who need Vehicle ABS information, Vehicle Transmission information and Engine Configurations information, please consider the Vehicle Platinum Edition(s).
Engine Basic edition(s) and Engine Premium edition(s) can be upgraded to higher edition(s), non-Plus editions can be upgraded to Plus editions. Ver. 1.00A firmware can be upgrade to Ver. 2.00A (See the following upgrade charts)

J1939 simulator V1.00A upgrade chart
Au J1939 Simulator 1.00A License Upgrade Code look-up Chart
J1939 Simulator V2.00A upgrade chart
Au J1939 Simulator 2.00A License Upgrade Code look-up Chart

Au SAE J1939 Simulator non-plus editions

Value Package and Engine Basic Edition

Engine Basic Edition can statically or dynamically simulate most of the engine SAE J1939 data. Two push buttons (UP and DOWN buttons) are used in the static mode to control the data outputs. The dynamic mode will automatically cycling the data in its range. LEDs will indicate the control status. And Buzzer sound reflects push button inputs. The buzzer sound can also be disabled.

After a network is physically connected, simply powering up the simulator will get it transmitting Engine operating data on SAE J1939 network. No software setup and No CAN protocol configuration skill are required.

Static mode will generate steady SAE J1939 data, Dynamic mode will generate constant-changing SAE J1939 data automatically.

Multiple CAN baud rate (1M/500K/250K/125K/62.5K bps) can be configured in field to cover the new SAE 500K CAN baud rate release. May-12-2017

VIN parameter is now supported to cover the US DOT/FMVSS ELD (Electronics Logging Device)mandate (starting from Dec-17-2017). May-12-2017

Value Package Edition(s) Supported J1939 Parameters (6)

  • Engine Coolant Temperature
  • Engine Load % at Current Speed
  • Engine Oil Pressure
  • Engine Fuel Rate
  • Engine Total Hours of Operation
  • Engine Speed (RPM)

Engine Basic 1.00A editions supported J1939 Parameters (32)

Engine Basic Edition support all Value Package Edition supported parameters, plus the following SAE-J1939 Parameters.

  • Wheel Based Vehicle Speed (MPH)
  • Battery Potential (Voltage) Switched
  • Total Vehicle Distance
  • Engine Trip Distance
  • Response Request for Engine Total Hours of Operation
  • Engine Clock
  • Response for Engine Clock Request
  • Engine Clock setup
  • SAE J1939 Fuel Level
  • Engine Turbocharger Boost Pressure
  • Engine Instant Fuel Economy
  • Accelerator Pedal Position
  • Engine Intake Manifold 1 Temperature
  • Cruise light
  • Engine Address Claim
  • Engine Address CANNOT Claim
  • Engine Response Request for Address Claim
  • Engine Address Conflict Response with Contention
  • Engine DM1 Red Stop Lamp OFF status
  • Engine DM1 Amber Lamp OFF status
  • SAE-J1939 Acknowledge protocol
  • Engine DM1 Health-heart-beat*
  • Water in fuel Indicator Health-heart-beat*
  • Vehicle Identification Number (VIN)
  • Response for VIN global request
  • Response for VIN specific request

* Health-heart-beat: normal signal only, no warning, and signal repeats in SAE defined �heart-beat� rate.

V2.00A Supported J1939 Parameters (63 items) --- Engine Basic Edition(s):

  • Engine Coolant Temperature
  • Engine Load % at Current Speed
  • Engine Oil Pressure
  • Engine Fuel Rate
  • Engine Total Hours of Operation
  • Engine Speed (RPM)
  • Wheel Based Vehicle Speed (MPH)
  • Battery Potential (Voltage) Switched
  • Total Vehicle Distance
  • Engine Trip Distance
  • Response Request for Engine Total Hours of Operation
  • Engine Clock
  • Response for Engine Clock Request
  • Engine Clock setup
  • SAE J1939 Fuel Level
  • Engine Turbocharger Boost Pressure
  • Engine Instant Fuel Economy
  • Accelerator Pedal Position
  • Engine Intake Manifold 1 Temperature
  • Cruise light
  • Engine Address Claim
  • Engine Address CANNOT Claim
  • Engine Response Request for Address Claim
  • Engine Address Conflict Response with Contention
  • Engine DM1 Red Stop Lamp OFF status
  • Engine DM1 Amber Lamp OFF status
  • SAE-J1939 Acknowledge protocol
  • Engine DM1 Health-heart-beat*
  • Water in fuel Indicator Health-heart-beat*
  • Vehicle Identification Number (VIN)
  • Response for VIN global request
  • Response for VIN specific request
  • Engine Oil Temperature
  • Engine Fuel Temperature (F)
  • Engine Oil Level (%)
  • Engine Coolant Pressure (PSI)
  • Engine Coolant Level (%)
  • Engine IS (Idle Shutdown) has Shutdown Engine
  • Engine IS Driver Alert Mode
  • Engine IS Timer Override
  • Engine IS Timer State
  • Engine IS Timer Function
  • A/C High Pressure Fan Switch
  • Refrigerant Low Pressure Switch
  • Refrigerant High Pressure Switch
  • Engine Wait to Start Lamp
  • EPS (Engine Protection System)has Shutdown Engine
  • EPS Approaching shutdown
  • EPS Timer Override
  • EPS Timer State
  • EPS Configuration
  • Engine Alarm Acknowledge
  • Engine Alarm Output Command Status
  • Engine Air Shutoff Command Status
  • Engine Overspeed Test
  • Engine Air Inlet Pressure
  • Engine Exhaust Gas Temperature
  • Actual Engine - Percent Torque
  • Nominal Friction - Percent Torque
  • Engine Exhaust Gas Recirculation (EGR) Mass Flow Rate (MFR)
  • Engine Inlet Air Mass Flow Rate (MFR)
  • SAE-J1939 Transport Protocol: TP.CM.BAM, TP.DT
  • SAE-J1939 Transport Protocol: TP.CM.RTS, TP.CM.CTS, TP.DT, TP.CM.EndOfMsgACK, TP.Conn.Abort

* Health-heart-beat: normal signal only, no warning, and signal repeats in SAE defined “heart-beat” rate.

Engine Premium Edition

Engine Premium Edition includes all Engine Basic Edition functions, plus the following features and SAE-J1939 Parameters.

V1.00A and V2.00A Supported J1939 Parameters --- Engine Premium Edition(s)

  • Engine DM1 Warning On/Off control
  • Engine DM2 On/Reset control
  • Engine Red Stop Lamp On/Off
  • Engine Amber Lamp On/Off
  • Water in fuel Indicator On/Off
  • Engine DM1 Single-Packet warning (e.g. Low Battery Voltage, etc.)
  • Engine DM1 Multi-packet warnings
  • Engine DM2 Single-Packet warning
  • Engine DM2 Multi-Packet warnings
  • Response for DM2 global request
  • Response for DM2 specific request
  • Engine DM3
  • SAE-J1939 Transport Protocol: TP.CM.BAM, TP.DT
  • SAE-J1939 Transport Protocol: TP.CM.RTS, TP.CM.CTS, TP.DT, TP.CM.EndOfMsgACK, TP.Conn.Abort

The Engine Premium Edition(s) support more PGNs and communication protocols than Engine Basic Edition, e.g. Engine DM1 and DM2 message etc. All SAE defined Transport Protocols are implemented for Engine DM1 and DM2. These features make the Engine Premium Edition a good development/test tool for any application which requires engine DM1, DM2 single-packet/multi-packet warning information or any Transport Protocol related Functions defined by SAE J1939-21.

Vehicle Platinum Edition

Vehicle Platinum Edition includes all Engine Premium Edition functions, plus the following features and SAE-J1939 Parameters.

V1.00A and V2.00A Supported J1939 Parameters --- Vehicle Platinum Edition(s):

  • Engine Configuration
  • ABS address claim
  • ABS Address CANNOT Claim
  • ABS Response Request for Address Claim
  • ABS Address Conflict Response with Contention
  • ABS Red Stop Lamp On/Off
  • ABS Amber Lamp On/Off
  • ABS DM1 (No warning or 1 warning)
  • ABS Heart-beat PGN-EBC1
  • Transmission address claim
  • Transmission Address CANNOT Claim
  • Transmission Response Request for Address Claim
  • Transmission Address Conflict Response with Contention
  • Transmission Oil Temperature
  • Transmission Red Stop Lamp On/Off
  • Transmission Amber Lamp On/Off
  • Transmission DM1 (No warning or 1 warning)
  • Transmission Heart-beat PGN-ETC1

The Vehicle Platinum Edition(s) simulate three ECU instances (Engine, ABS and Transmission) in a vehicle network. It has all the functions of Engine Premium Edition, and many ABS and Transmission information. The Engine Configuration PGN is also supported for any vehicle device/equipment which needs the function of engine torque control. The Vehicle Platinum Edition(s) are highly recommended for vehicle integration development and test (e.g. truck, Recreation Vehicles, school bus, Agriculture vessels, etc.).

Au SAE J1939 Simulator PLUS editions

PLUS Edition = Non-Plus Edition + PC Remote Terminal Program

  • The Value Package Plus Edition includes all Value Package non-plus functions, plus capabilities of showing simulated J1939 information on a PC screen and remote control capabilities from a PC.
  • The Engine Basic Plus Edition includes all Engine Basic non-plus edition functions, plus capabilities of showing simulated J1939 information on a PC screen and remote control capabilities from a PC.
  • The Engine Premium Plus Edition includes all Engine Premium non-plus edition functions, plus capabilities of showing simulated J1939 information on a PC screen and remote control capabilities from a PC.
  • The Vehicle Platinum Plus edition includes all Vehicle Platinum non-plus edition functions, plus capabilities of showing simulated J1939 information on a PC screen and remote control capabilities from a PC.

Typical Au J1939 Simulator Connection

Connect Au J1939 Simulator to PC using RS232 serial extension cable
Connect Au J1939 Simulator to PC using RS232 serial extension cable
Connect Au J1939 Simulator to PC using RS232 to USB convert cable
Connect Au J1939 Simulator to PC using RS232 to USB convert cable
Au J1939 Simulator 1.00A Remote Terminal Graphic User Interface (GUI)
Au J1939 Simulator 1.00A Remote Terminal Graphic User Interface (GUI)
Au J1939 Simulator 2.00A Remote Terminal Graphic User Interface (GUI)
Au J1939 Simulator 2.00A Remote Terminal Graphic User Interface (GUI)

Au SAE J1939 Simulator SCRIPT editions

Script Edition = Plus Edition + Script Control

  • The Engine Basic Script edition includes all Engine Basic Plus Edition functions, plus script control capabilities
  • The Engine Premium Plus edition includes all Engine Premium PlusEdition functions, plus script control capabilities
  • The Vehicle Platinum Script Edition includes all Vehicle Platinum Plus Edition functions, plus script control capabilities

Generate Script Command

Au J1939 Simulator Script Control
Au J1939 Simulator Script Control
  • When script control is enabled, 6 parameters will be controlled by script control, the maximum allowed values will be showing in its input area respectively.
  • Click “ Clear All ” button will clear all values in the input area, it has no effect on the simulator
  • Change the inputs to a desire value.
  • Click “ Verify & Send ” button, script command will be send to J1939 Simulator, those value change will be reflected on the display panel.
  • Script command can be copied as part of a script file, which can be saved and run at later time.

Run script from a file

Click “ Load File ” to load a script file

Load script file
Load script file

Select a desire script file, click “ Open ”

Select and open a script file
Select and open a script file

Loaded script file name will display, script commands in the script file will display in the script view-port.

Click “ Run File ” button to run script file.

Script loaded and run
Script loaded and run

Current running script command will be highlighted in the script view-port. Script running status will display (for example, current command is delay, delay counting down timer is showing)

Script is running
Script is running

When script finish running, last command of the script file will be highlighted. “ Script Finished Successfully ” message will be showing as the running status

Script finished Successfully
Script finished Successfully
