Au NMEA 2000 PowerTrain Simulators Ver 1.00A

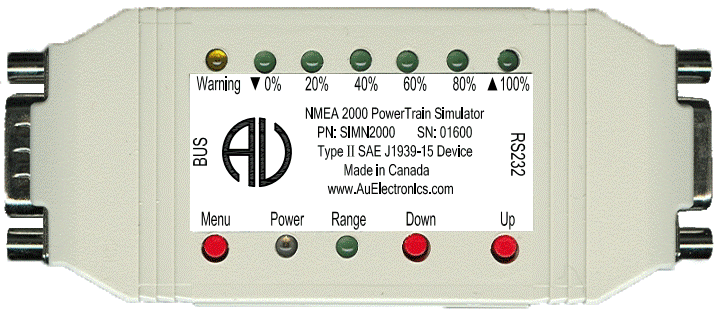

The Au NMEA 2000 PowerTrain simulators V1.00A release can generate majority of NMEA 2000 PowerTrain Controller Area Network (CAN) signals on a NMEA 2000 network. Au NMEA 2000 PowerTrain simulators are designed very easy to use. All editions run independently (without personal computer). It is widely used as valuable tools for any situation from product-line test, incoming inspection, business demonstration to product development and product validation.

Eight editions of NMEA 2000 PowerTrain simulator are now available to meet different customer needs (4 non-plus editions and 4 plus editions).

The non-plus editions are stand-alone devices. They can be operated independently without a PC. Full range of NMEA 2000 signals can be generated by controlling 3 push buttons.

The Plus editions have all the functions of non-Plus editions, plus a PC Remote Terminal program, which can be used to control and display detail information of simulated NMEA 2000 signals on a PC screen.

PLUS Edition = Non-Plus Edition + PC Remote Terminal Program + Device Instance management

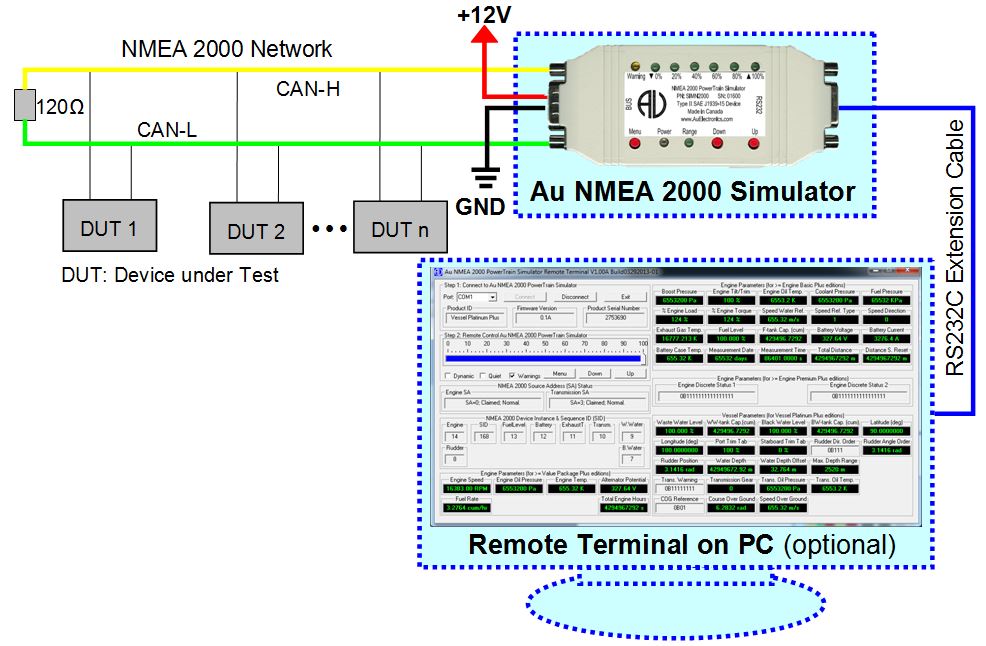

A typical NMEA 2000 network topology with Au NMEA 2000 PowerTrain Simulator is illustrated here:

All the editions have the following basic function:

• Push buttons (Up & Down) are used in "static mode" to adjust data outputs
• In "dynamic mode", data cycles automatically in its SAE defined range
• LED indicates the control step value and reflect push button operations
• Buzzer sound also reflects push button inputs, it can be enabled/disabled

Major Hardware Features:

Major Operating Features:

The Value Package Edition(s) provides 6 most frequently used engine parameters for marine stationary application.

The Engine Basic Edition(s) provides 26 engine normal operating data, such as Engine RPM, Vesel Speed, Engine Oil pressure, etc.

The Engine Premium Edition(s) support 28 engine running parameters and engine warnings.

The Vessel Platinum Edition(s) support 49 parameters for engine, transmission, rudder, water depth, etc.

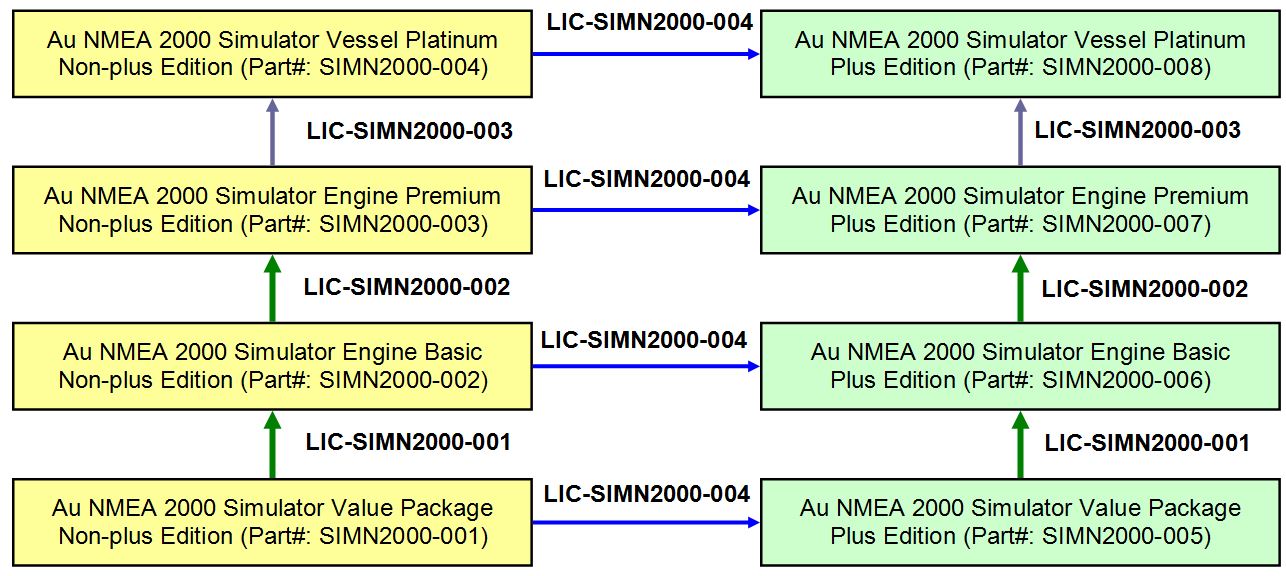

Value Package Edition(s), Engine Basic edition(s) and Engine Premium edition(s) can be upgraded to higher edition(s), non-Plus editions can be upgraded to Plus editions.

All editions can statically or dynamically simulate the NMEA 2000 PowerTrain data. Two push buttons (UP and DOWN buttons) are used in the static mode to control the data outputs. The dynamic mode will automatically cycling the data in its range. LEDs will indicate the control status. And buzzer sound reflects push button inputs. The buzzer sound can also be disabled.

After a network is physically connected, simply powering up the simulator will get it transmitting operating data on NMEA 2000 network. No software setup and No CAN protocol configuration skill are required.

Static mode will generate steady NMEA 2000 data, Dynamic mode will generate constant-changing NMEA 2000 data automatically.

Au NMEA 2000 PowerTrain Simulator editions

Value Package Editions (6 parameters)

Au NMEA 2000 PowerTrain Simulator Value Package Edition(s) support 6 NMEA 2000 engine parameters:

• Engine Speed (RPM)
• Engine Oil Pressure(Pa)
• Engine Temperature 1 (K)
• Engine Alternator Potential (V)
• Engine Fuel Rate (cum/hour)
• Total Engine Hour (s)

Engine Basic Editions (26 parameters)

Au NMEA 2000 PowerTrain Simulator Engine Basic Edition(s) support all 6 NMEA 2000 parameters listed with Value Package Edition(s), plus the following 20 NMEA 2000 parameters:

• Engine Boost Pressure (Pa)
• Engine Tilt / Trim (%)
• Engine Oil Temperature (K)
• Engine Coolant Pressure (Pa)
• Engine Fuel Pressure (Pa)
• Percent Engine Load (%)
• Percent Engine Torque (%)
• Speed Water Referenced  (m/s)
• Speed Water Referenced Type
• Speed Direction
• Exhaust gas temperature (K)
• Fuel Level (%)
• Fuel Tank Capacity (cum)
• Battery Voltage (V)
• Battery Current (A)
• Battery Case Temperature (K)
• Measurement Date (days)
• Measurement Time (s)
• Total Cumulative Distance (m)
• Distance Since Last Reset(m)

Engine Premium Editions (28 parameters)

Au NMEA 2000 PowerTrain Simulator Engine Premium Edition(s) support all 26 NMEA 2000 parameters listed with Engine Basic Edition(s), plus the following 2 NMEA 2000 parameters:
� Engine Discrete Status 1
� Engine Discrete Status 2

Vessel Platinum Editions (49 parameters)

Au NMEA 2000 PowerTrain Simulator Vessel Platinum Edition(s) support all 28 NMEA 2000 parameters listed with Engine Premium Edition(s), and the following 21 NMEA 2000 parameters:

• Waste Water Level (%)
• Waste Water Tank Capacity (cum)
• Black Water Level (%)
• Black Water Tank Capacity (cum)
• Latitude (deg)
• Longitude (deg)
• Port trim tab (%)
• Starboard trim tab (%)
• Rudder Direction Order
• Rudder Angle Order (rad)
• Rudder Position (rad)
• Water Depth (m)
• Water Depth Offset (m)
• Maximum Depth Range (m)
• Transmission Discrete warning status
• Transmission Gear
• Transmission Oil Pressure (Pa)
• Transmission Oil Temperature (K)
• Course Over Ground Reference
• Course Over Ground (rad)
• Speed Over Ground (m/s)

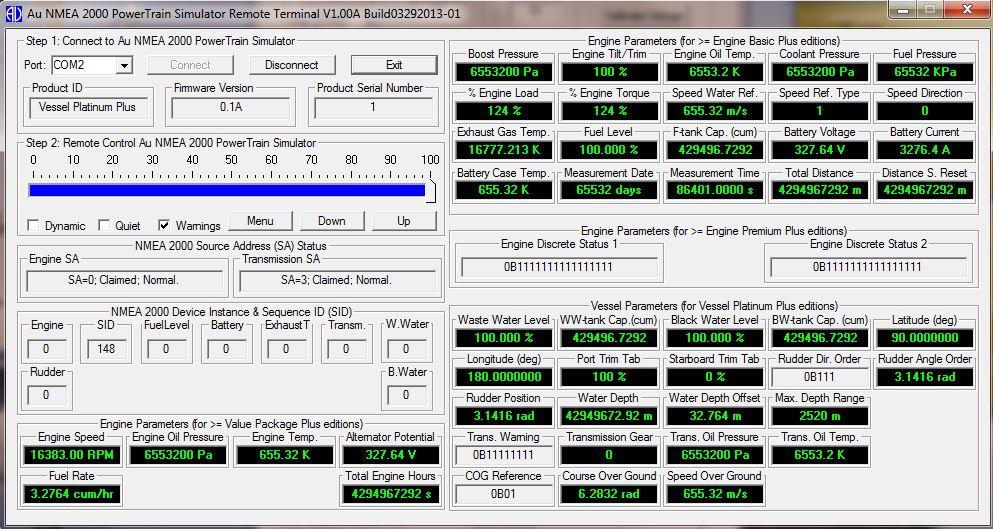

Au NMEA 2000 PowerTrain Simulator Remote Terminal Ver. 1.00A
