Au GW3-1939-1708 is a family of gateway products which can convert SAE J1939 data to SAE J1708/J1587 data. It can be used for both stationary heavy duty diesel applications (such as Gen-set) and on-highway vehicles.
Pin out Definition
There are two DB9 connectors: a DB9 female connector on RS232 side, and a DB9 male connector on "BUS" side.
The RS232 connector can be used to connect to a Computer for device monitoring, license management and firmware updates. A RS232 serial extension cable (Au Part Number: CBL-RS232-01) can be used to connect the device to PC. For PC without Serial port, a USB to RS232 Converter cable (CBL-USB-232) can be used. The RS232 connector is not required to be connected during normal operation.
The BUS connector provides power supply, J1939 and J1708 connection to the device. The pin out is illustrated here:
Typical topology

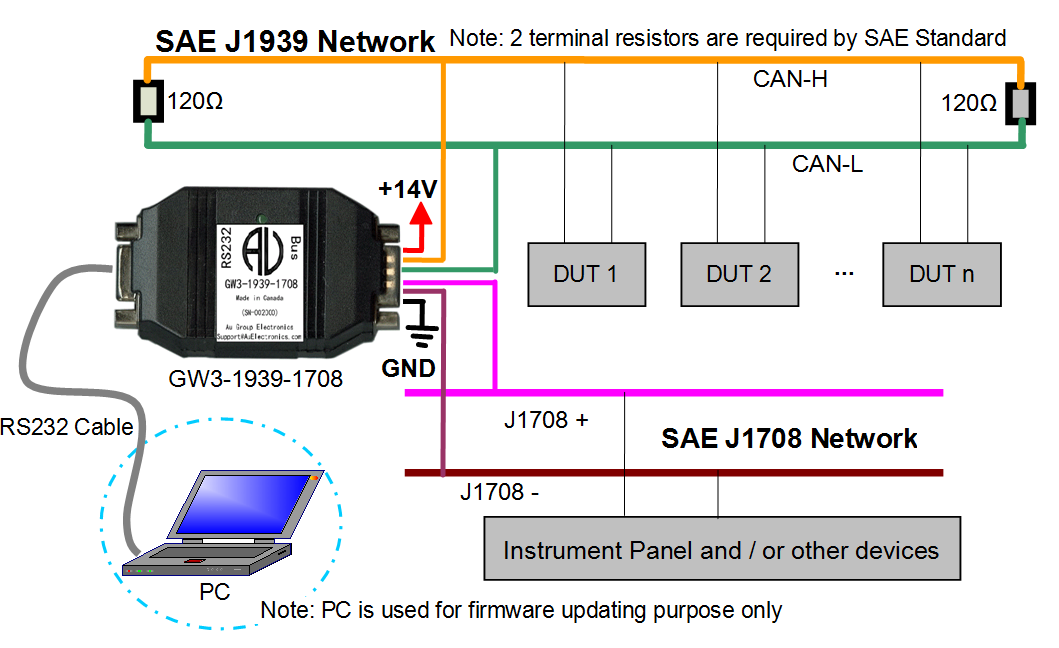

A typical topology of J1939 and J1708 network with GW3-1939-1708 is illustrated here:
Features
Power Supply: Operating range: 10V ~ 32V DC ; nominal voltage: +12V DC or +24V DC
Operating Electric Current: 65mA typical, 250mA max
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Size: 3-1/8 inch L X 1-11/16 inch W X 13/16 inch H (78mm X 42mm X 21mm)
Enclosure Color: Black
1 LED (Communication)
1 RS232 interface (DB9 female connector)
1 DB9 Male connector on BUS side
TVS (Transient Voltage Suppressor) protection on J1939 and J1708/J1587 bus
There are two editions of GW3 available: Basic edition (part #: GW3-1939-1708-001) and Premium edition (part #: GW3-1939-1708-002). GW3 basic edition supports 24 parameters. GW3 premium edition supports 39 parameters.
Basic Edition (supports 24 parameters)
Stop Lamp Attention/Warning Indicator Lamps Status (PID 44)
Check Engine light Attention/Warning Indicator Lamps Status (PID 44)
Throttle Position (PID 51)
Parking Brake Status (PID 70)
Road Speed (PID 84)
Cruise Control Status (PID 85)
Cruise Control Set Speed (PID 86)
Power Take Off Status (PID 89)
Percent Engine Load (PID 92)
Fuel Level (PID 96)
Water In Fuel Indicator (PID 97)
Engine Oil Pressure (PID 100)
Engine Coolant Temperature (PID 110)
ATC Control Status (PID 151)
Battery Potential (Voltage) (PID 168)
Ambient Air Temperature (PID 171)
Engine Oil Temperature (PID 175)
Fuel Rate (instantaneous) (PID 183)
Fuel Rate (instantaneous) HINO (PID 183)
Engine Speed (PID 190)
Total Vehicle Distance (PID 245)
Total Vehicle Distance-HINO (PID 245)
Total Engine Hours (PID 247)
Total Fuel Used (PID 250)
Premium Edition (supports 39 parameters)
GW3 premium edition support above 24 parameters plus the following 15 parameters:
Second Fuel Level (Right Side) (PID 38)
Idle Shutdown Timer Status (PID 71)
Percent Accelerator Pedal Position (PID 91)
Fuel Filter Differential Pressure (PID 95)
Fuel Level (PID 96)
Boost Pressure (PID 102)
Net Battery Current (PID 114)
Exhaust Gas Temperature (PID 173)
Transmission #1 Oil Temperature (PID 177)
Trip Fuel (PID 182)
Instantaneous Fuel Economy (PID 184)
Average Fuel Economy (PID 185)
Total Idle Hours (PID 235)
Total Idle Fuel Used (PID 236)
Vehicle Identification Number - VIN (PID 237)
Trip Distance (PID 244)
