Au SAE J1708/J1587 Simulators
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Au SAE J1708/J1587 Simulators 1.00A |
|
Au SAE J1708/J1587 Simulator 1.00A (Value Package non-plus edition) Part#: SIMJ1708-001 Price: $260.00 (USD) |
|
Au SAE J1708/J1587 Simulator 1.00A (Engine Basic non-plus edition) Part#: SIMJ1708-002 Price: $660.00 (USD) |
|
Au SAE J1708/J1587 Simulator 1.00A (Engine Premium non-plus edition) Part#: SIMJ1708-003 Price: $1160.00 (USD) |
|
Au SAE J1708/J1587 Simulator 1.00A (Vehicle Platinum non-plus edition) Part#: SIMJ1708-004 Price: $1760.00 (USD) |
|
Au SAE J1708/J1587 Simulator 1.00A (Value Package Plus edition) Part#: SIMJ1708-005 Price: $560.00 (USD) |
|
Au SAE J1708/J1587 Simulator 1.00A (Engine Basic Plus edition) Part#: SIMJ1708-006 Price: $960.00 (USD) |
|
Au SAE J1708/J1587 Simulator 1.00A (Engine Premium Plus edition) Part#: SIMJ1708-007 Price: $1460.00 (USD) |
|
Au SAE J1708/J1587 Simulator 1.00A (Vehicle Platinum Plus edition) Part#: SIMJ1708-008 Price: $2060.00 (USD) |
|
Au SAE J1708/J1587 Simulator 1.00A (Engine Basic Script edition) Part#: SIMJ1708-009 Price: $1760.00 (USD) |
|
Au SAE J1708/J1587 Simulator 1.00A (Engine Premium Script edition) Part#: SIMJ1708-010 Price: $2260.00 (USD) |
|
Au SAE J1708/J1587 Simulator 1.00A (Vehicle Platinum Script edition) Part#: SIMJ1708-011 Price: $2860.00 (USD) |
|
12-month firmware updating service and priority technical support for Au SAE J1708/J1587 Simulator Service#: SVS-SIM-J1708 Price: $500.00 (USD) |
|
Note: SVS-SIM-J1708 can be purchased in one-year increments or purchased at any time, it is not necessary to purchase continuously.

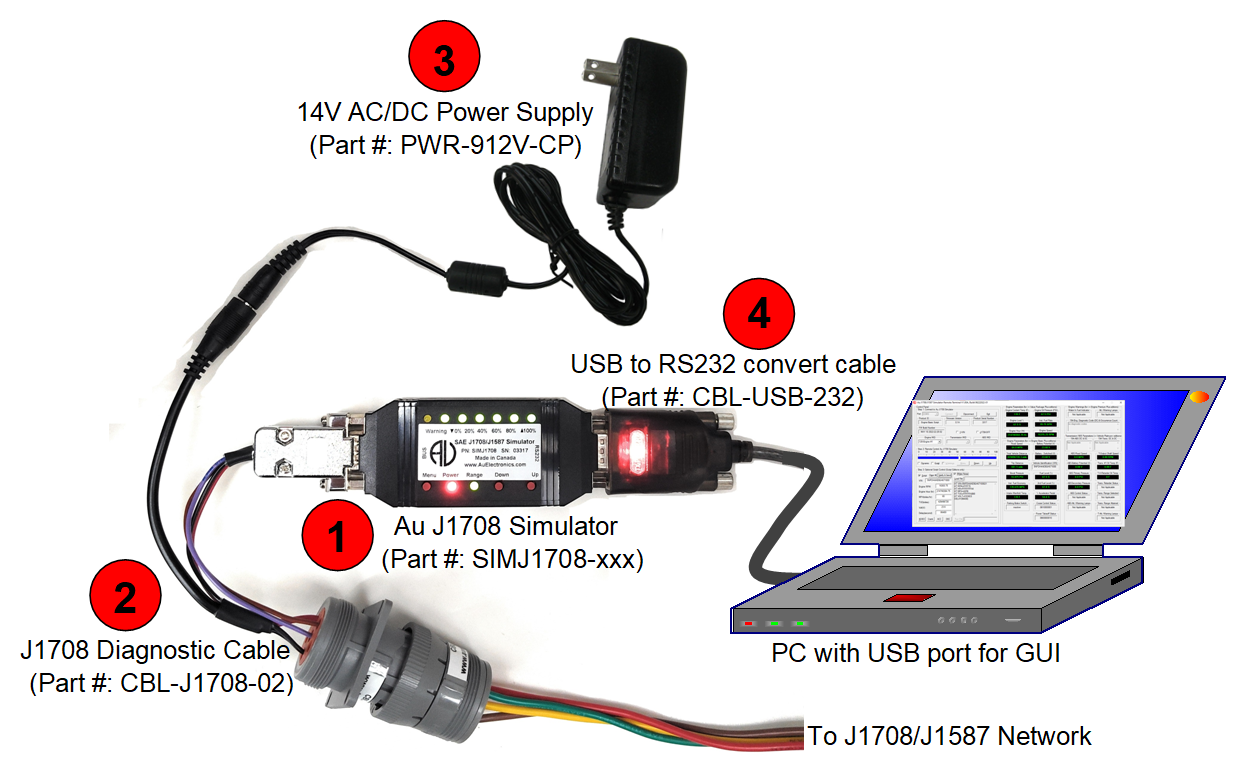

Au SAE J1708/J1587 Simulator Accessories |
|
 |
6-wire CAN/J1708 Cable for DB9 Male Connector Part #: CBL-CAN-485-01 Price: $14.99 USD |
 |
USB to RS232 Converter Cable Part #: CBL-USB-232 Price: $15.99 USD |
 |
RS232 Serial Extension Cable
Part #: CBL-RS232-01 Price: $8.99 USD |
 |
J1708 diagnostic cable (6 pin deutsch connector) Part #: CBL-J1708-02 Price: $48.00 USD |
 |
J1708 Y cable with DB9 female connector (6-pin deutsch connector) Part #: CBL-J1708-06-DB9 Price: $75.00 USD |
 |
Wall Mount AC/DC Power Supply -Positive Center Part #: PWR-912V-CP Price: $18.99 USD |

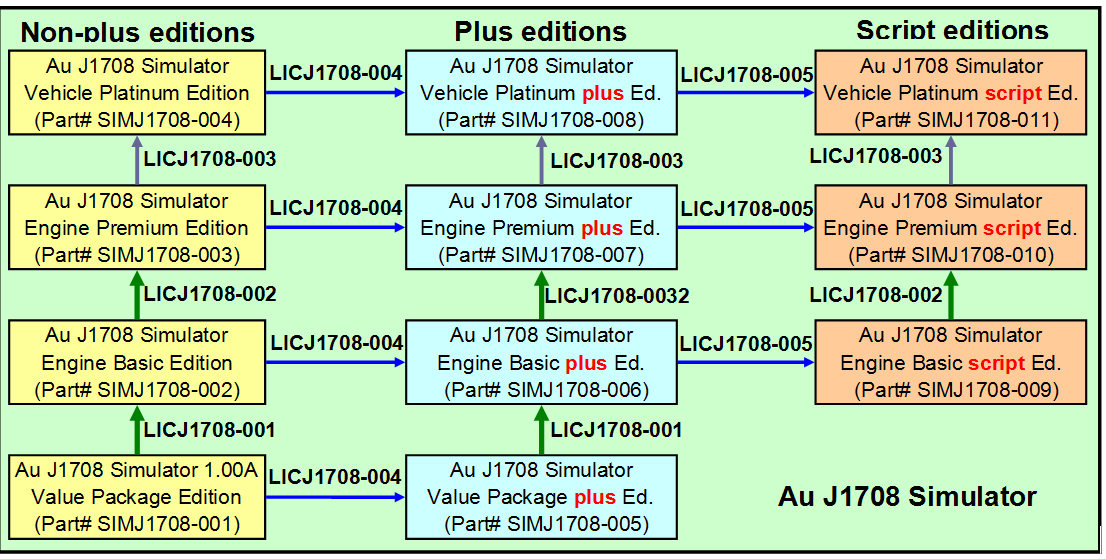

Au J1708/J1587 Simulators 1.00A License Upgrade |
|
License Upgrade from Value Package Edition(s) to Engine Basic Edition(s) Upgrade License Order #: LICJ1708-001 Price: $400.00 (USD) |
|
License Upgrade from Engine Basic edition(s) to Engine Premium edition(s) Upgrade License Order #: LICJ1708-002 Price: $500.00 (USD) |
|
License Upgrade from Engine Premium edition(s) to Vehicle Platinum edition(s) Upgrade License Order #: LICJ1708-003 Price: $600.00 (USD) |
|
License Upgrade from non-plus Edition(s) to plus edition(s) Upgrade License Order #: LICJ1708-004 Price: $300.00 (USD) |
|
License Upgrade from Plus edition(s) to Script edition(s) Upgrade License Order #: LICJ1708-005 Price: $800.00 (USD) |
|
Eleven editions of Au SAE J1708/J1587 simulator are now available to meet different customer needs (4 non-plus editions, 4 plus editions and 3 Script editions).
- SIMJ1708-001: Au SAE J1708/J1587 simulator Ver 1.00A, Value Package Edition
- SIMJ1708-002: Au SAE J1708/J1587 simulator Ver 1.00A, Engine Basic Edition
- SIMJ1708-003: Au SAE J1708/J1587 simulator Ver 1.00A, Engine Premium Edition
- SIMJ1708-004: Au SAE J1708/J1587 simulator Ver 1.00A, Vehicle Platinum Edition
- SIMJ1708-005: Au SAE J1708/J1587 simulator Ver 1.00A, Value Package Plus Edition
- SIMJ1708-006: Au SAE J1708/J1587 simulator Ver 1.00A, Engine Basic Plus Edition
- SIMJ1708-007: Au SAE J1708/J1587 simulator Ver 1.00A, Engine Premium Plus Edition
- SIMJ1708-008: Au SAE J1708/J1587 simulator Ver 1.00A, Vehicle Platinum Plus Edition
- SIMJ1708-009: Au SAE J1708/J1587 simulator Ver 1.00A, Engine Basic Script Edition
- SIMJ1708-010: Au SAE J1708/J1587 simulator Ver 1.00A, Engine Premium Script Edition
- SIMJ1708-011: Au SAE J1708/J1587 simulator Ver 1.00A, Vehicle Platinum Script Edition
Au SAE J1708 Simulator Non-plus editions
Au J1708/J1587 Simulator non-plus editions are stand-alone devices. They can be operated independently without a PC. Full range of J1708/J1587 signals can be generated by controlling 3 push buttons.
Au SAE J1708 Simulator Plus editions
Plus Edition = non-Plus Edition + Remote Terminal GUI Display and Control capabilities
Au J1708 Simulator plus editions have all the functions of non-plus edition, plus PC Remote Terminal program. Like the non-plus editions, all the plus editions can still work independently without a PC. The optional "Remote Terminal GUI" connects Au J1708 Simulator to a PC through serial communication. It displays the simulator information, alters and displays the simulator settings, and performs license upgrading for all editions. It also shows simulated J1708 signals on a computer screen for "Plus" editions and "script" editions.
Au SAE J1708 Simulator Script editions
Script Edition = Plus Edition + Script Control capabilities
- The Engine Basic Script edition includes all Engine Basic Plus Edition functions, plus script control capabilities
- The Engine Premium Plus edition includes all Engine Premium PlusEdition functions, plus script control capabilities
- The Vehicle Platinum Script Edition includes all Vehicle Platinum Plus Edition functions, plus script control capabilities
Script control sets six parameters to any value in the SAE- J1708 specification allowed range: Engine RPM, Vehicle speed, VIN, Battery voltage, Engine hour, Total vehicle distance. It could generate a few frequently used script segments and run a saved script file. The script can be delayed, repeated, with or without white noise. Script control can also switch CAN bus on-off. Engine hour and Total vehicle distance will accumulate over time.

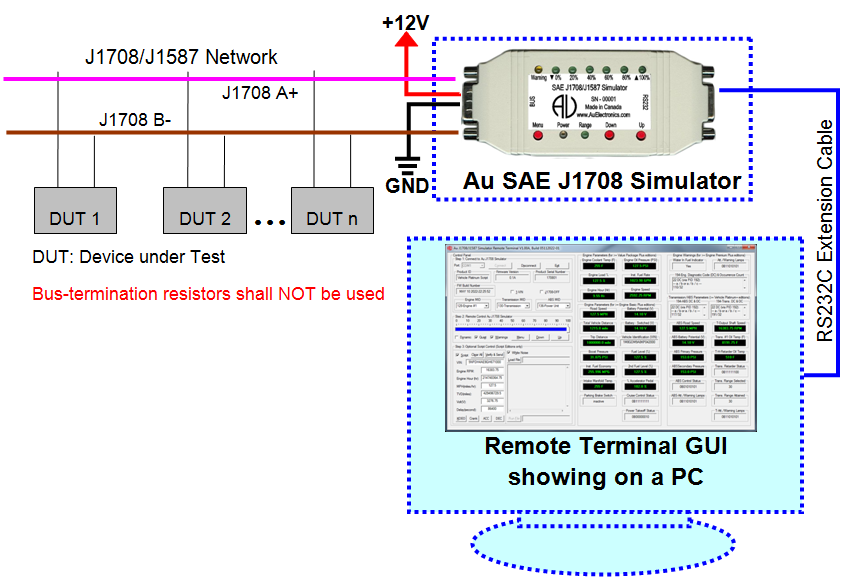

A typical J1708 network topology with a J1708 simulator is illustrated here:

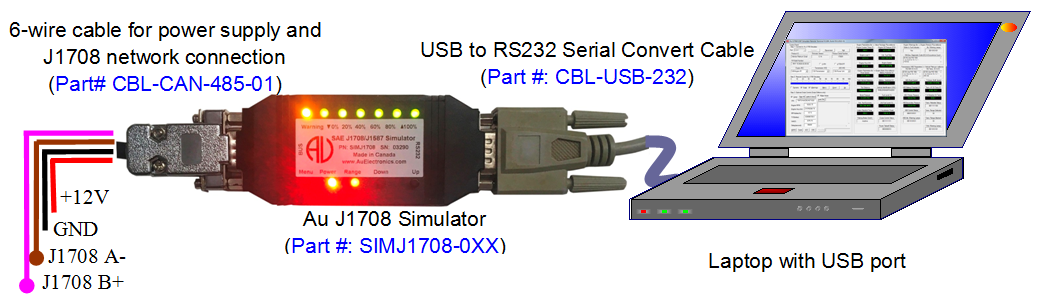

Au J1708/J1587 Simulator can be connected to PC serial (COM) port through a RS232 serial extension cable (Part#: CBL-RS232-01), as shown in the following picture:

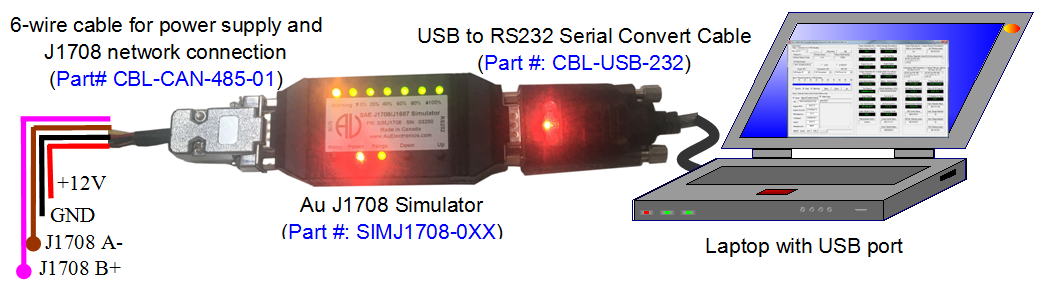

For PCs with USB port, a USB to RS232 converter cable (Part#: CBL-USB-232) can be used, as shown in the following picture:
All the editions have the following basic function:
- Push buttons (Up & Down) are used in "static mode" to adjust data outputs.
- In "dynamic mode", data cycles automatically in its SAE defined range
- LED indicates the control step value and reflect push button operations
- Buzzer sound also reflects push button inputs, it can be enabled/disabled
- Each edition has a different list of supported parameters and MID
Major Hardware Features:
- Nominal Voltage: +12V DC or +24V DC
- Power Supply Operating range: +10V ~ +32VDC
- Operating Electric Current: 65mA typical, 250 mA max
- Operating Temperature: -4 ˚F to 185 ˚F (-20 ˚C to 85 ˚C)
- TVS (Transient Voltage Suppressor) protection on CAN bus
- Compact size: 4-1/8" L X 1-3/4"W X 7/8"H
- Enclosure color: Black or PC white
- 1 Buzzer

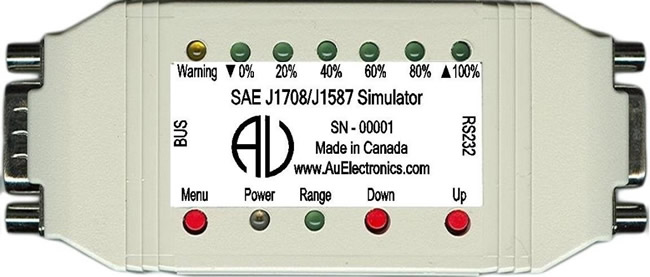

- 3 push buttons: MENU, DOWN, UP, the J1708/J1587 signal can be adjusted by push buttons
- 9 LED indicators: POWER, RANGE, WARNING, UP+100%, DOWN+0%, 80%, 60%, 40%, 20%, Led will blink when one of these six numeric-specified control point is selected.
- 1 RS232 interface for software update, license management and remote control (Plus editions only)
- 1 DB9 male connector for Power, Ground, J1708A+, and J1708B-
- SAE J1708/J1587 Baud rate: 9600 bits/second
- Bit Access Time: Per SAE J1708 Section 3.1 and Section 5.2.2.2
- Inter-character bit time: ≤ 2 bit time
- Minimum Idle Time: 10 bit times
- Maximum network length: 131 feet (40 meter)
- Minimum capacity: 20 standard nodes
- Ground: All assemblies using the J1708 link must have Common Ground References
- Wire: A minimum 18AWG twisted-pair wire, a minimum of one twist/inch (360˚/2.54 mm) required
- Accessory cables are available and MUST be ordered separately
Major Operating Features:
- Ease of use - Easy-operate design with production-line-operator and sales person in mind
- Smart features - Recall last operating mode at power-on, capable of generating dynamic data, etc.
- STATIC MODE output steady SAE J1708/J1587 signal, which can also be adjusted manually
- DYNAMIC MODE automatically generate dynamic SAE J1708/J1587 signal
- STATIC MODE and DYNAMIC MODE can be easily alternated

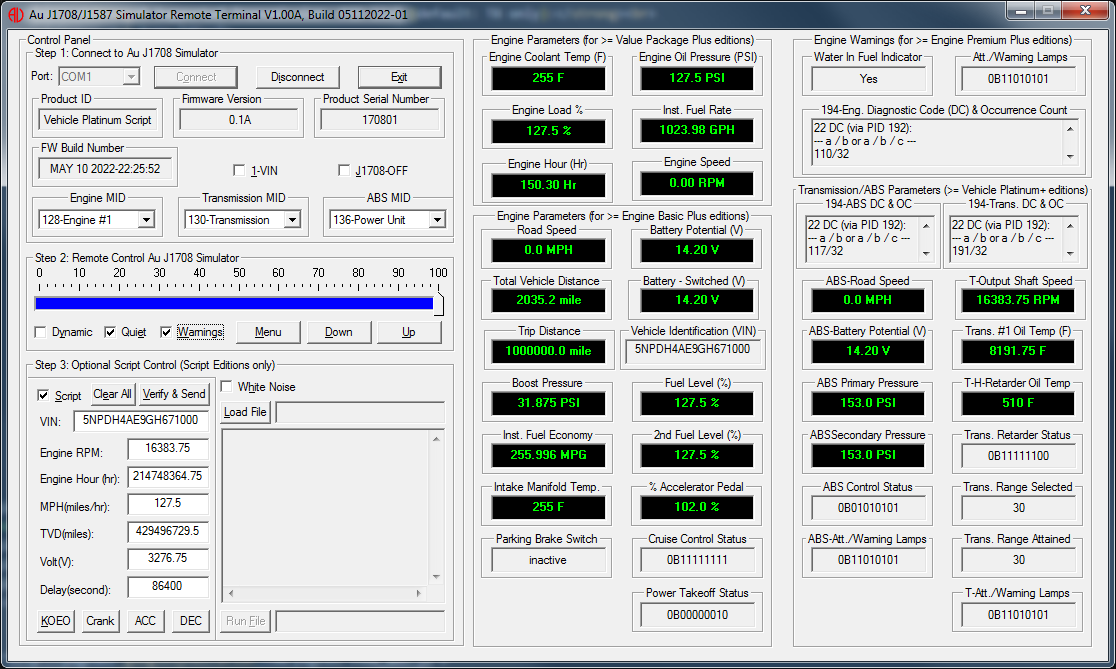

- PC remote software is available for all "Plus" editions, it can show simulated J1708/J1587 signal on a computer screen
- All Control functions are also available from the PC remote software for "Plus" editions
- Easy In-field license upgrade with the build-in license management tool. For owners with Value Package Edition(s), Engine Basic Edition(s) or Engine Premium Edition(s), when more function is needed, the Value Package Edition(s), Basic Edition(s) and Premium Edition(s) can be easily upgrade to higher editions up to Vehicle Platinum Edition(s)
- In-field software code (firmware) update Capability for minor upgrades with Au PIC Bootloader
- Annual support and minor upgrade services (Order #: SVS-SIM-J1708) are available
- Custom design is available
The Value Package Edition(s) provides 8 most frequently used engine parameters for stationary application.
The Engine Basic Edition(s) provides 23 engine parameters. It is suitable for those situations which only require normal Engine operating data, such as Engine RPM, Vehicle Speed, Engine Oil pressure, etc.
The Engine Premium Edition(s) is suitable for those situation which also require engine warning information and multi-section communication protocols, etc.
For users who need Vehicle ABS information, Vehicle Transmission information, please consider the Vehicle Platinum Edition(s).
Value Package Edition(s), Engine Basic edition(s) and Engine Premium edition(s) can be upgraded to higher edition(s), non-Plus editions can be upgraded to Plus editions, Plus editions can be upgraded to Script editions.
All editions can statically or dynamically simulate the SAE J1708/J1587 data. Two push buttons (UP and DOWN buttons) are used in the static mode to control the data outputs. The dynamic mode will automatically cycling the data in its range. LEDs will indicate the control status. And buzzer sound reflects push button inputs. The buzzer sound can also be disabled.
After a network is physically connected, simply powering up the simulator will get it transmitting operating data on SAE J1708/J1587 network. No software setup and No CAN protocol configuration skill are required.
Static mode will generate steady SAE J1708/J1587 data, Dynamic mode will generate constant-changing SAE J1708/J1587 data automatically.
Au SAE J1708/J1587 Simulator editions
Value Package Editions (up to 6 MID and 8 PID)
1 fixed Engine Message ID for Non-Plus Edition: 128 (Engine #1)
6 adjustable Engine Message ID for Plus Edition: 128 (Engine #1) 175 (Engine #2) 183 (Engine #3)
184 (Engine #4) 185 (Engine #5) 186 (Engine #6)
8 supported Engine PID parameters (default: TX only):
- Request Parameter (PID: 0, RX only)
- Component-Specific Request (PID: 128, RX only)
- Percent Engine Load (PID: 92)
- Engine Oil Pressure (PID: 100)
- Engine Coolant Temperature (PID: 110)
- Fuel Rate (Instantaneous) (PID: 183)
- Engine Speed (PID: 190)
- Engine Hour* (PID: 247)
Engine Basic Editions (up to 6 MID and 23 PID)
1 fixed Engine Message ID for Non-Plus Edition: 128 (Engine #1)
6 adjustable Engine Message ID for Plus Edition: 128 (Engine #1) 175 (Engine #2) 183 (Engine #3)
184 (Engine #4) 185 (Engine #5) 186 (Engine #6)
23 supported Engine PID parameters:
- Includes all 8 parameters supported by value package edition
- Engine Basic parameters (15):
- Second Fuel Level (Right Side) (PID: 38)
- Parking Brake Switch Status (PID: 70)
- Road Speed (MPH) (PID: 84)
- Cruise Control Status (PID: 85)
- Power Takeoff Status (PID: 89)
- Percent Accelerator Pedal Position (PID: 91)
- Fuel Level (PID: 96)
- Boost Pressure (PID: 102)
- Engine Intake Manifold Temperature (PID: 105)
- Battery Potential (Voltage), Switched* (PID: 158); (* On Request per SAE J1587 definition)
- Battery Potential (Voltage) (PID: 168)
- Instantaneous Fuel Economy (PID: 184)
- Trip Distance (PID: 244)
- Total Vehicle Distance (PID: 245)
- System Diagnostic Code and Occurrence Count Table (No warning code, heart beat only) (PID: 194)
Engine Premium Editions (up to 6 MID and 27 PID)
1 fixed Engine Message ID for Non-Plus Edition: 128 (Engine #1)
6 adjustable Engine Message ID for Plus Edition: 128 (Engine #1) 175 (Engine #2) 183 (Engine #3)
184 (Engine #4) 185 (Engine #5) 186 (Engine #6)
27 Engine PID Parameters Supported:
- Includes all 23 parameters supported by Engine Basic edition
- Engine Premium parameters (4):
- Attention/Warning Indicator Lamps Status (PID: 44)
- Water in Fuel Indicator (PID: 97)
- Transmitter System Diagnostic Code and Occurrence Count Table (PID: 194)
- Multisection Parameter (PID: 192)
Vehicle Platinum Editions (up to 15 MID and 44 PID)
1 fixed Engine Message ID for Non-Plus Edition: 128 (Engine #1)
1 fixed Transmission Message ID for Non-Plus Edition: 130 (Transmission)
1 fixed ABS Message ID for Non-Plus Edition: 136 (Power Unit)
6 adjustable Engine Message ID for Plus Edition: 128 (Engine #1) 175 (Engine #2) 183 (Engine #3)
184 (Engine #4) 185 (Engine #5) 186 (Engine #6)
3 adjustable Transmission Message ID for Plus Edition: 130 (Transmission)
176 (Additional Transmission) 223 (Shift-Console, Primary)
6 adjustable ABS Message ID for Plus Edition: 136 (Power Unit) 137 (Trailer #1) 138 (Trailer #2) 139 (Trailer #3) 246 (Trailer #4) 247 (Trailer #5)
44 Engine/Transmission/ABS PID Parameters Supported:
- Includes all 27 parameters supported by Engine Premium edition
- Vehicle Platinum parameters (17): 8 Supported ABS PID list (default: TX only):
- ABS Road Speed (PID: 84)
- Battery Potential (Voltage) (PID: 168)
- Brake Primary Pressure (PID: 117)
- Brake Secondary Pressure (PID: 118)
- ABS Control Status (PID: 49)
- Attention/Warning Indicator Lamps Status (PID: 44)
- Transmitter System Diagnostic Code and Occurrence Count Table (PID: 194)
- Multisection Parameter (PID: 192)
- Transmission Output Shaft Speed (PID: 191)
- Hydraulic Retarder Oil Temperature (PID: 120)
- Retarder Status (PID: 47)
- Transmission #1 Oil Temperature (PID: 177)
- Transmission Range Selected (PID: 162)
- Transmission Range Attained (PID: 163)
- Attention/Warning Indicator Lamps Status (PID: 44)
- Transmitter System Diagnostic Code and Occurrence Count Table (PID: 194)
- Multisection Parameter (PID: 192)
Au J1708/J1587 Simulator Remote Terminal Ver. 1.00A
