Au Truck / Bus Fleet Management System (FMS) Simulators

Find other system products:

Au Truck / Bus Fleet Management System (FMS) Simulators
( Ver 1.00A)

FMS Simulator

The Au Truck / Bus Fleet Management System (FMS) simulator can generate Controller Area Network (CAN) signal per Truck FMS Standard (Vers. 02.00) and Bus FMS Standard (Vers. 00.02). Au FMS simulators are designed very easy to use. All editions can run independently (without personal computer). Au FMS Simulators are widely used as valuable tools for any situation from product-line test, incoming inspection, business demonstration, to product development and product validation.

Note: The parameter list on this page is for reference purpose only, actual product parameters may be modified (without further notice) according to the newest released FMS standards.

Au Fleet Management System (FMS)Simulators Ver 1.00A
Au FMS Simulator 1.00A Value Package (Non-Plus Edition) Part#: SIM-FMS-007 Price: $260.00 (USD)
Au FMS Simulator 1.00A Value Package (Plus Edition) Part#: SIM-FMS-008 Price: $560.00 (USD)
Au Truck FMS Simulator 1.00A (Non-Plus Edition) Part#: SIM-FMS-001 Price: $350.00 (USD)
Au Bus FMS Simulator 1.00A (Non-Plus Edition) Part#: SIM-FMS-002 Price: $450.00 (USD)
Au Truck and Bus FMS Simulator 1.00A (Non-Plus Edition) Part#: SIM-FMS-003 Price: $700.00 (USD)
Au Truck FMS Simulator 1.00A (Plus Edition) Part#: SIM-FMS-004 Price: $650.00 (USD)
Au Bus FMS Simulator 1.00A (Plus Edition) Part#: SIM-FMS-005 Price: $750.00 (USD)
Au Truck and Bus FMS Simulator 1.00A (Plus Edition) Part#: SIM-FMS-006 Price: $1000.00 (USD)
1 year support and minor upgrades for Au FMS Simulator Service#: SVS-SIM-FMS Price: $200.00 (USD)

Au FMS Simulator (Gen II) Accessories
	CAN Cable for DB9 Male Connector Part #: CBL-CAN-01 Price: $12.99 USD
	USB to RS232 Converter Cable Part #: CBL-USB-232 Price: $15.99 USD
	RS232 Serial Extension Cable Part #: CBL-RS232-01 Price: $8.99 USD
Note: All Accessories MUST be ordered separately.

Au FMS Simulator License Upgrades
Upgrade from 'Truck FMS' Edition(s) to 'Truck and Bus' Edition(s) Upgrade License Order #: LIC-FMS-001 Price: $350.00 (USD)
Upgrade from 'Bus FMS' Edition(s) to 'Truck and Bus' Edition(s) Upgrade License Order #: LIC-FMS-002 Price: $250.00 (USD)
FMS simulator Upgrade from non-Plus Edition(s) to Plus Edition(s) Upgrade License Order #: LIC-FMS-003 Price: $300.00 (USD)

Extra Copies of Au Truck/Bus FMS Simulator User Manual
Au FMS Simulator User Manual (Ver. 1.00A) with Software CD Part #: UM-SIM-FMS-G1-100A Price: $75.00 USD
Note 1: This Extra Copy of User Manual can Only be ordered by "Au FMS Simulator User" Note 2: "User Manual" order from non "Au FMS Simulator User" will be ignored.

Eight editions of Au Truck/Bus Fleet Management System (FMS) simulators are now available to meet different customer needs.

SIM-FMS-007: Value Package FMS simulator Ver 1.00A, Non-Plus Edition,
SIM-FMS-001: Truck FMS simulator Ver 1.00A, Non-Plus Edition (He),
SIM-FMS-002: Bus FMS simulator Ver 1.00A, Non-Plus Edition (Ne),
SIM-FMS-003: Truck and Bus FMS simulator Ver 1.00A, Non-Plus Edition (Ar),
SIM-FMS-008: Value Package FMS simulator Ver 1.00A, Plus Edition
SIM-FMS-004: Truck FMS simulator Ver 1.00A, Plus Edition (Kr),
SIM-FMS-005: Bus FMS simulator Ver 1.00A, Plus Edition (Xe),
SIM-FMS-006: Truck and Bus FMS simulator Ver 1.00A, Plus Edition (Rn).

PLUS Edition = Non-Plus Edition + PC Remote Terminal Program

Summary of Au FMS Simulators and Accessories		Part#
Non-Plus Edition	Au Truck FMS Simulator (Non-Plus Edition)	SIM-FMS-001
	Au Bus FMS Simulator (Non-Plus Edition)	SIM-FMS-002
	Au Truck and Bus FMS Simulator (Non-Plus Edition)	SIM-FMS-003
	Au Value Package FMS Simulator (Non-Plus Edition)	SIM-FMS-007
Plus Edition	Au Value Package FMS Simulator (Plus Edition)	SIM-FMS-008
	Au Truck FMS Simulator (Plus Edition)	SIM-FMS-004
	Au Bus FMS Simulator (Plus Edition)	SIM-FMS-005
	Au Truck and Bus FMS Simulator (Plus Edition)	SIM-FMS-006
Accessories	USB to RS232 Converter Cable	CBL-USB-232
	RS232 Serial Extension Cable	CBL-RS232-01
	4-wire cable for power supply and CAN network connection	CBL-CAN-01

Major Hardware Features:

SAE J1939-15 Type II ECU, contains an internal 120 ohm load resistor for easy network setup
Common-Mode Choke and TVS (Transient Voltage Suppressor) protection on CAN bus
Compact size: 4-1/8" L X 1-3/4"W X 7/8"H
9 LED indicators: POWER, RANGE, BTLD, UP+100%, DOWN+0%, 80%, 60%, 40%, 20%, Led will blink when one of these six numeric-specified control point is selected.
Enclosure color: Black or PC white
1 Buzzer
3 push buttons: MENU, DOWN, UP, the FMS CAN signal can be adjusted by push buttons
1 RS232 interface for software update, license management and remote control (Plus editions only)
1 DB9 male connector for Power, Ground, CAN_H and CAN_L
Accessory cables are available and must be ordered separately, RS232 Serial Extension Cable (part #: CBL-RS232-01), USB to RS232 Converter Cable (part #: CBL-USB-232) and 4-wire CAN Cable for DB9 Male Connector (part #: CBL-CAN-01, which provides power supply and CAN network connection to the simulator) are available and must be ordered separately
Power supply: +12V ~ +14.2VDC, 250 mA max
Operating temperature: -4 °F to 185 °F (-20 °C to 85 °C)

Major Operating Features:

Ease of use - Easy-operate design with production-line-operator and sales person in mind
Smart features - Recall last operating mode at power-on, capable of generating dynamic data, etc.
STATIC MODE output steady FMS CAN signal, which can also be adjusted manually
DYNAMIC MODE automatically generate dynamic FMS CAN signal
STATIC MODE and DYNAMIC MODE can be easily alternated
PC remote software is available for all "Plus" editions, it can show simulated FMS signal on a computer screen
All Control functions are also available from the PC remote software for all "Plus" editions
Easy In-field license upgrade with Au license management tool. For owners with "Truck FMS" Edition(s) or "Bus FMS" Edition(s), when more function is needed, they can be easily upgrade to "Truck and Bus FMS" Edition(s)
In-field software code (firmware) update Capability for minor upgrades (Order #: SVS-SIM-FMS) with Au PIC Bootloader
Annual support and minor upgrade services (Order #: SVS-SIM-FMS) are available
Custom design and modification are available

The Value Package Simulator(s) can generate 33 common parameters shared by Truck FMS standard and Bus FMS Standard. They are suitable for application which only needs those shard parameters of the two standards.
The Truck FMS Simulator(s) are suitable for those situations which need all Controller Area Network signal for Truck FMS Standard.
The Bus FMS Simulator(s) are suitable for those situation which need all Controller Area Network signal for Bus FMS Standard.
For users who need all Controller Area Network signal for both Truck FMS standard and Bus FMS standard, please consider the "Truck and Bus FMS Simulator" Edition(s).
"Value Package FMS simulator(s)", "Truck FMS Simulator(s)" and "Bus FMS Simulator(s)" can be upgraded to "Truck and Bus FMS Simulator", "non-Plus editions" can be upgraded to "Plus editions". (See the following upgrade charts)

FMS Simulator License upgrade

Au FMS Simulators

Value Package, non-Plus Edition & Plus Edition

Value Package FMS simulator, non-Plus Edition, can statically or dynamically simulate the common signal shared by Truck FMS standard and BUS FMS standard. Two push buttons (UP and DOWN buttons) are used in the static mode to control the data outputs. The dynamic mode will automatically cycling the data in its range (standard defined). LEDs will indicate the control status. And Buzzer sound reflects push button inputs. The buzzer sound can also be disabled.

After a network is physically connected, simply powering up the simulator will get it transmitting CAN data on a CAN network. No software setup and No CAN protocol configuration skill are required.

Static mode will generate steady CAN data, Dynamic mode will generate constant-changing CAN data automatically.

The following is a list of supported parameters shared by Truck FMS standard and Bus FMS standard:

• Wheel Based Speed
• Clutch switch
• Brake switch
• Cruise control active
• Accelerator pedal position
• Total fuel used
• Fuel level
• Engine speed
• Total Engine Hours
• Vehicle Identification Number
• SW-version supported
• Requests supported
• Diagnostics supported
• High resolution Total vehicle distance
• Drive recognize
• Driver 1 working state
• Driver 1 time related states
• Driver 1 card
• Driver 2 working state
• Driver 2 time related states
• Driver 2 card
• Tachograph vehicle speed
• Direction indicator
• Tachograph performance
• Overspeed
• Handling information
• System event
• Engine coolant Temperature
• Ambient Air Temperature
• Driver 1 identification
• Driver 2 identification
• Fuel Rate
• Instantaneous Fuel Economy
• TP.CM + DT Transport protocol

The Value Package FMS simulator, Plus edition, includes all functions on Value Package FMS, non-Plus edition, plus capability of showing simulated CAN information on a PC screen, and remote control capability from a PC. A Remote terminal for Value Package FMS Plus edition is shown below:

Truck FMS, non-Plus Edition --- Helium (He) & Plus Edition --- Krypton(Kr)

Truck FMS simulator, non-Plus Edition, can statically or dynamically simulate all controller area network (CAN) signal defined by Truck FMS standard. Two push buttons (UP and DOWN buttons) are used in the static mode to control the data outputs. The dynamic mode will automatically cycling the data in its range (standard defined). LEDs will indicate the control status. And Buzzer sound reflects push button inputs. The buzzer sound can also be disabled.

After a network is physically connected, simply powering up the simulator will get it transmitting CAN data on a truck FMS CAN network. No software setup and No CAN protocol configuration skill are required.

Static mode will generate steady Truck FMS CAN data, Dynamic mode will generate constant-changing Truck FMS CAN data automatically.

All Truck FMS standard Vers. 02.00 defined CAN parameters are supported by Truck FMS simulator. The following is a list of supported Truck FMS Standard parameters (Truck FMS only parameters are identified with *):

Wheel Based Speed
Clutch switch
Brake switch
Cruise control active
Accelerator pedal position
Total fuel used
Fuel level
Engine speed
Total Engine Hours
Vehicle Identification Number
SW-version supported
Requests supported
Diagnostics supported
High resolution total vehicle distance
Drive recognize
Driver 1 working state
Driver 1 time related states
Driver 1 card
Driver 2 working state
Driver 2 time related states
Driver 2 card
Tachograph vehicle speed
Direction indicator
Tachograph performance
Overspeed
Handling information
System event
Engine coolant Temperature
TP.CM+TP.DT Transport protocol
Service distance *
PTO state *
Tire location (0, 1, 2, 3)*
Axle location (0, 1, 2)*
Axle weight (00, 01, 10-13, 20-23)*

The Truck FMS simulator, Plus edition, includes all functions on Truck FMS, non-Plus edition, plus capability of showing simulated CAN information on a PC screen, and remote control capability from a PC. A Remote terminal for Truck FMS Plus edition is shown below:

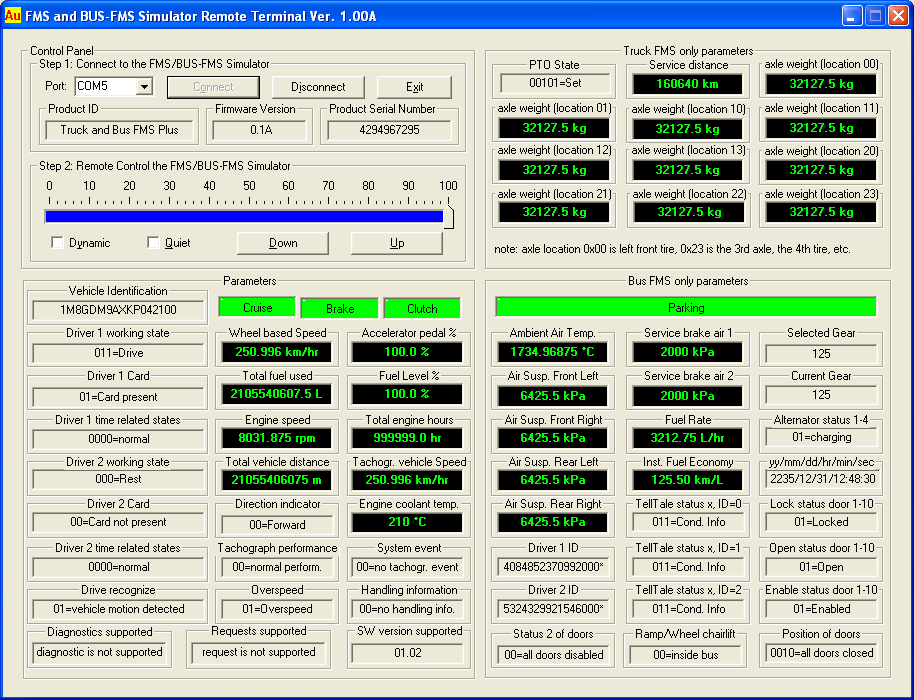

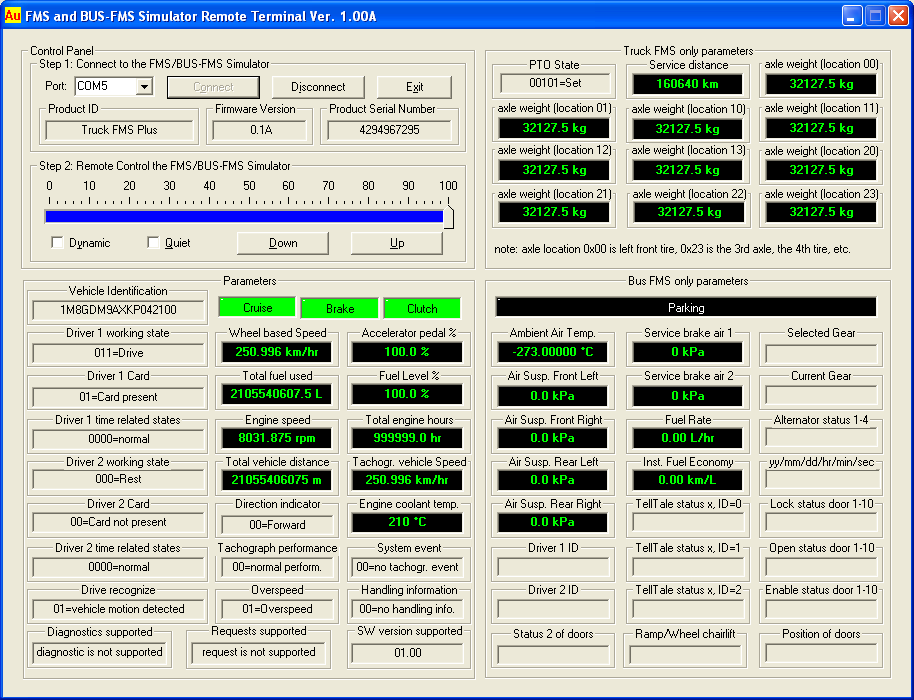

Truck FMS Remote Terminal for Plus edition

Bus FMS, non-Plus Edition --- Neon (Ne) & Plus Edition --- Xenon(Xe)

Bus FMS simulator, non-Plus Edition, can statically or dynamically simulate all controller area network (CAN) signal defined by Bus FMS standard. Two push buttons (UP and DOWN buttons) are used in the static mode to control the data outputs. The dynamic mode will automatically cycling the data in its range (standard defined). LEDs will indicate the control status. And Buzzer sound reflects push button inputs. The buzzer sound can also be disabled.

After a network is physically connected, simply powering up the simulator will get it transmitting CAN data on a Bus FMS CAN network. No software setup and No CAN protocol configuration skill are required.

Static mode will generate steady Bus FMS CAN data, Dynamic mode will generate constant-changing Bus FMS CAN data automatically.

All CAN parameters defined by Bus FMS standard Ver 00.02 are supported by Bus FMS simulator. The following is a list of supported Bus FMS Standard parameters (Bus FMS only parameters are identified with **):

Wheel Based Speed
Clutch switch
Brake switch
Cruise control active
Accelerator pedal position
Total fuel used
Fuel level
Engine speed
Total Engine Hours
Vehicle Identification Number
SW-version supported
Requests supported
Diagnostics supported
High resolution Total vehicle distance
Service distance
Drive recognize
Driver 1 working state
Driver 1 time related states
Driver 1 card
Driver 2 working state
Driver 2 time related states
Driver 2 card
Tachograph vehicle speed
Direction indicator
Tachograph performance
Overspeed
Handling information
System event
Engine coolant Temperature
TP.CM+TP.DT Transport protocols
Parking Brake Switch**
Ambient Air Temperature**
Position of Doors**
Ramp/Wheel chairlift**
Status 2 of doors**
Lock status Door 1-10**
Open status Door 1-10**
Enable status Door 1-10**
Seconds, Minutes, Hours**
Month, Day, Year**
Service Brake Air Pressure Circuit #1**
Service Brake Air Pressure Circuit #2**
Alternator Status 1-4**
Selected Gear**
Current Gear**
Bellow Pressure Front Axle Left**
Bellow Pressure Front Axle Right**
Bellow Pressure Rear Axle Left**
Bellow Pressure Rear Axle Right**
Driver 1 identification**
Driver 2 identification**
Fuel Rate**
Instantaneous Fuel Economy**
Telltale Block ID (0-2)**
Telltale Status 1-15**
Cooling air conditioning**
High beam, main beam**
Low beam, dipped beam**
Turn signals**
Hazard warning**
Provision for the disabled or handicapped persons
Parking Brake**
Brake failure / brake system malfunction**
Hatch open**
Fuel level**
Engine coolant temperature**
Battery charging condition**
Engine oil**
Position lights, side lights**
Front fog light**
Rear fog light**
Park Heating**
Engine**
Service, call for maintenance**
Transmission fluid temperature**
Transmission failure / malfunction**
Anti-lock brake system failure**
Worn brake linings**
Windscreen/ windshield washer fluid**
Tire failure / malfunction**
Malfunction / general failure**
Engine oil temperature**
Engine oil level**
Engine coolant level**
Steering fluid level**
Steering failure**
Height Control (Leveling) **
Retarder**
Engine Emission system failure**
ESP indication**
Brake lights**
Articulation**
Stop Request**
Pram request**
Bus stop brake**
Ad blue level**

The Bus FMS simulator, Plus edition, includes all functions on Bus FMS, non-Plus edition, plus capability of showing simulated CAN information on a PC screen and remote control capability from a PC. A Remote terminal for Bus FMS Plus edition is shown below:

Bus FMS Simulator Remote Terminal for Plus edition

Truck and Bus FMS, non-Plus Edition --- Argon (Ar) & Plus Edition --- Radon (Rn)

Truck and Bus FMS simulator, non-Plus Edition, can statically or dynamically simulate all controller area network (CAN) signal defined by both Truck FMS standard and Bus FMS standard. Two push buttons (UP and DOWN buttons) are used in the static mode to control the data outputs. The dynamic mode will automatically cycling the data in its range (standard defined). LEDs will indicate the control status. And Buzzer sound reflects push button inputs. The buzzer sound can also be disabled.

After a network is physically connected, simply powering up the simulator will get it transmitting CAN data on a FMS CAN network. No software setup and No CAN protocol configuration skill are required.

Static mode will generate steady FMS CAN data, Dynamic mode will generate constant-changing FMS CAN data automatically.

All CAN parameters defined by Truck FMS standard (Ver. 01.00) and Bus FMS standard (Ver. 00.02) are supported by Truck and Bus FMS simulator. The following is a list of supported parameters (Truck only FMS parameters are identified with *; Bus only FMS parameters are identified with **):

Wheel Based Speed
Clutch switch
Brake switch
Cruise control active
Accelerator pedal position
Total fuel used
Fuel level
Engine speed
Total Engine Hours
Vehicle Identification Number
SW-version supported
Requests supported
Diagnostics supported
High resolution total vehicle distance
Drive recognize
Driver 1 working state
Driver 1 time related states
Driver 1 card
Driver 2 working state
Driver 2 time related states
Driver 2 card
Tachograph vehicle speed
Direction indicator
Tachograph performance
Overspeed
Handling information
System event
Engine coolant Temperature
TP.CM+TP.DT Transport protocols
Service distance *
PTO state *
Tire location (0, 1, 2, 3)*
Axle location (0, 1, 2)*
Axle weight (00, 01, 10-13, 20-23)*
Parking Brake Switch**
Ambient Air Temperature**
Position of Doors**
Ramp/Wheel chairlift**
Status 2 of doors**
Lock status Door 1-10**
Open status Door 1-10**
Enable status Door 1-10**
Seconds, Minutes, Hours**
Month, Day, Year**
Service Brake Air Pressure Circuit #1**
Service Brake Air Pressure Circuit #2**
Alternator Status 1-4**
Selected Gear**
Current Gear**
Bellow Pressure Front Axle Left**
Bellow Pressure Front Axle Right**
Bellow Pressure Rear Axle Left**
Bellow Pressure Rear Axle Right**
Driver 1 identification**
Driver 2 identification**
Fuel Rate**
Instantaneous Fuel Economy**
Telltale Block ID (0-2)**
Telltale Status 1-15**
Telltale Status - Cooling air conditioning**
High beam, main beam**
Low beam, dipped beam**
Turn signals**
Hazard warning**
Provision for the disabled or handicapped persons
Parking Brake**
Brake failure / brake system malfunction**
Hatch open**
Fuel level**
Engine coolant temperature**
Battery charging condition**
Engine oil**
Position lights, side lights**
Front fog light**
Rear fog light**
Park Heating**
Engine**
Service, call for maintenance**
Transmission fluid temperature**
Transmission failure / malfunction**
Anti-lock brake system failure**
Worn brake linings**
Windscreen/ windshield washer fluid**
Tire failure / malfunction**
Malfunction / general failure**
Engine oil temperature**
Engine oil level**
Engine coolant level**
Steering fluid level**
Steering failure**
Height Control (Leveling) **
Retarder**
Engine Emission system failure**
ESP indication**
Brake lights**
Articulation**
Stop Request**
Pram request**
Bus stop brake**
Ad blue level**

The Truck and Bus FMS simulator, Plus edition, includes all functions on Truck and Bus FMS simulator, non-Plus edition, plus capability of showing simulated CAN information on a PC screen and remote control capability from a PC. A Remote terminal for Truck and Bus FMS simulator Plus edition is shown below:

Truck and Bus FMS Simulator Remote Terminal for Plus edition
