Au J1939 Message Center System (MCS) includes a handheld device and computer software with a graphic user interface (GUI).
Au J1939 MCS is a turn-key solution that displays about 20 SAE-J1939 parameters on a computer screen.

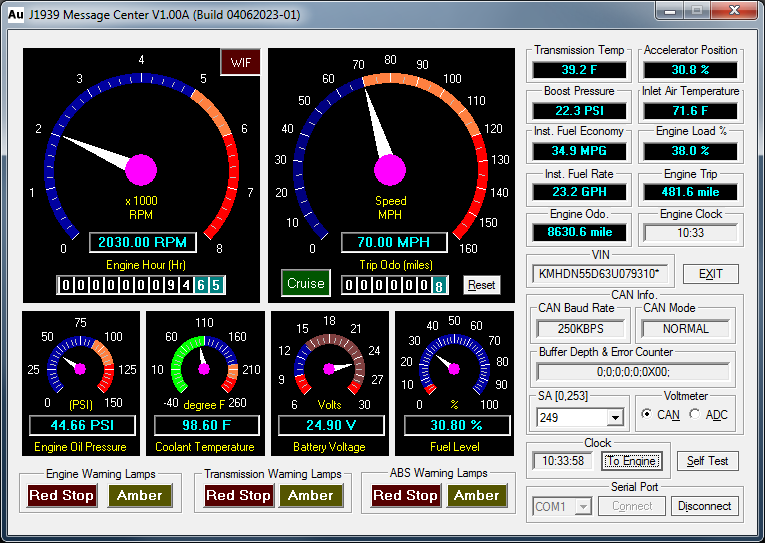

The GUI could serve as a secondary display on trucks, school buses, recreation vehicles (RV), marine vessels, or any vehicles with SAE-J1939 controller area network (CAN).
Major Hardware Features

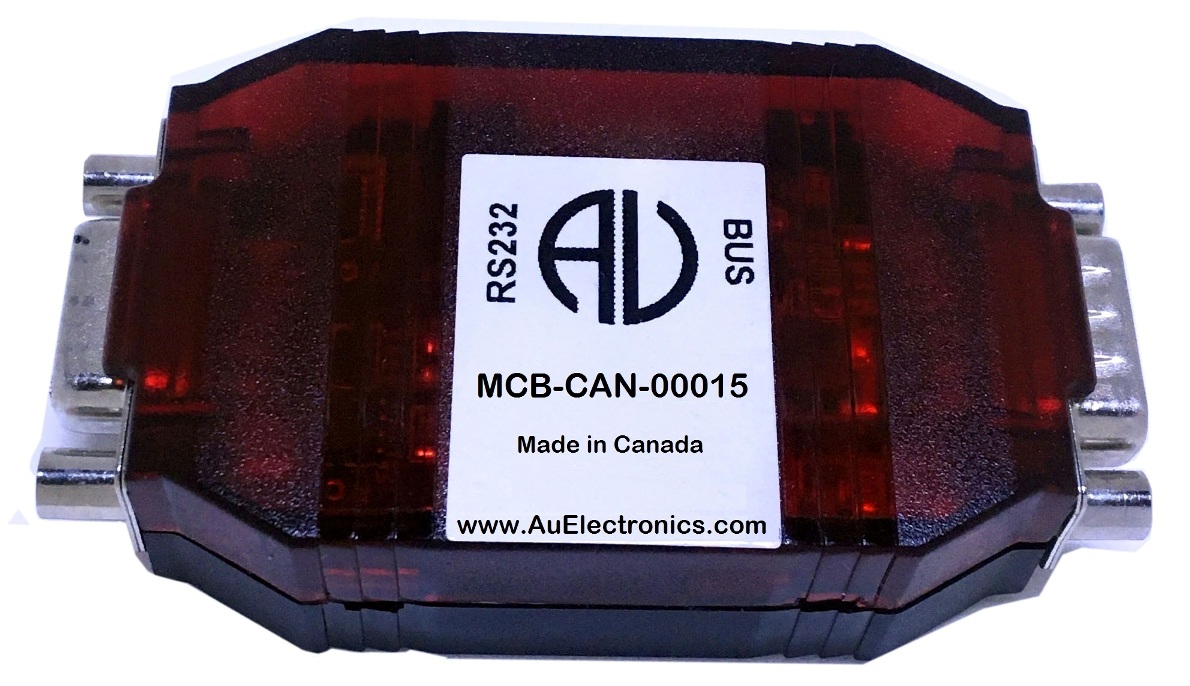

Au J1939 MCS box is a handheld device with one LED and two DB9 connectors (one is a DB9 female connector on the RS232 side, the other is a DB9 male connector on the BUS side). The major features of the device are listed below:
Power Supply: Operating range: 10V ~ 32V DC; nominal voltage: +12V DC or +24V DC
Operating Electric Current: 65mA typical, 250mA max
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Size: 3-1/8 inch L X 1-11/16 inch W X 13/16 inch H (78mm X 42mm X 21mm)
TVS (Transient Voltage Suppressor) protection on J1939 and J1708/J1587 bus
Enclosure Color: Black and translucent red
1 LED for communication event indication
1 RS232 interface (DB9 female connector): can connect to a PC or any device with RS232 serial port( default RS232 baud rate: 115.2K)

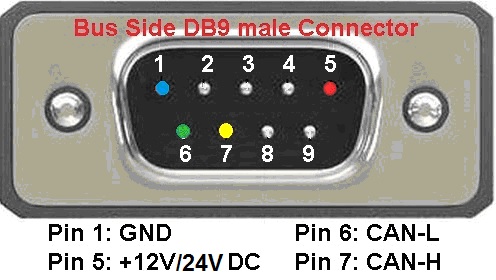

1 BUS interface (DB9 male connector): can connect to J1939/CAN network and a power supply (+14.2V / 24V DC nominal). The pin-out of the DB9 male "BUS" interface is illustrated in following pin-out diagram:
Pin out Diagram
Three ways of PC connection

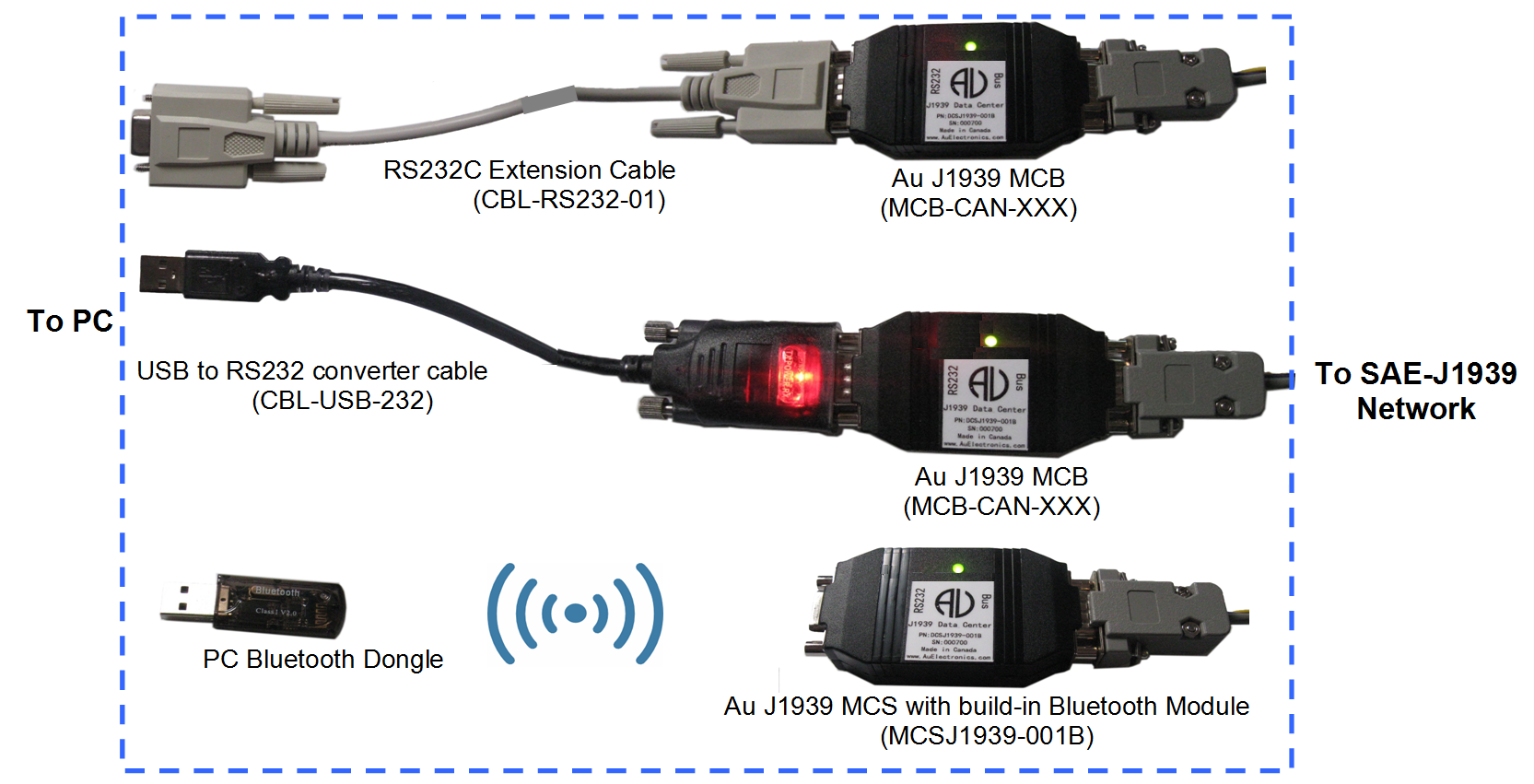

Au J1939 MCS device has an RS232 interface. It can be connected to a PC in one of three ways
It can be connected to the RS232 (serial) port of a PC through an RS232 serial extension cable (part#: CBL-RS232-01)
It can be connected to the USB port of a PC through a USB to RS232 converter cable (part#: CBL-USB-232)
With an optional built-in Bluetooth module, the J1939 MCS device can communicate with a computer through a Bluetooth dongle
Typical topology

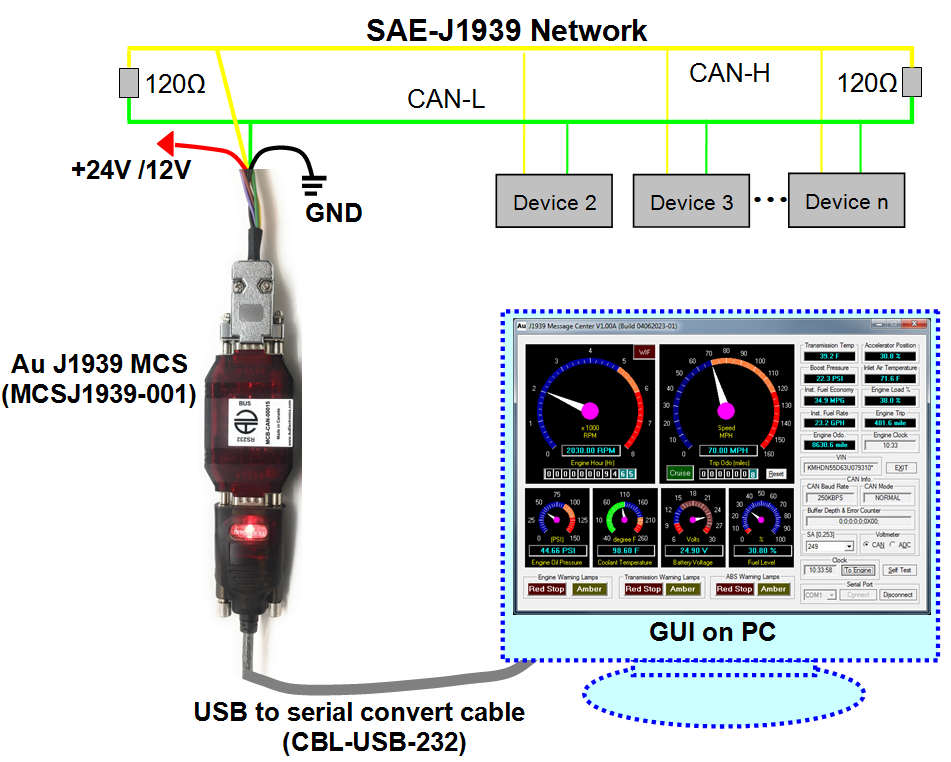

A typical application of Au J1939 MCS in SAE J1939-15 network is illustrated here:
Major Software Features
Automatic CAN baud rate detection
Ease of Use: Displays SAE-J1939 messages from CAN network without the requirement of decent J1939 knowledge/experience or very complicated configuration settings.
6 parameters displayed in both analog Gauges and digital display:
Engine Revolution per Minute (RPM)
Vehicle Speed
Engine Oil pressure
Engine Coolant Temperature
Battery Voltage (from CAN bus or from power supply for the device)
J1939 Fuel level (if available)
11 parameters displayed in digital outputs and computer clock
Engine Hour
Trip Odometer Accumulation and Reset Capability
Transmission Temperature
Engine Boost Pressure
Instantaneous Fuel Economy
Instantaneous Fuel Rate
Accelerator Position
Inlet Air Temperature
Engine Load Percentage
Engine Trip
Total Vehicle distance
Vehicle Identification Number (VIN)
Clock Display
8 message/warning lamps
Cruise Lamp
Water In Fuel Information
Engine Red Stop warning Lamps
Engine Amber warning Lamps
Transmission Red Stop Warning Lamps
Transmission Amber Warning Lamps
ABS Red Stop Warning Lamps
ABS Amber Warning Lamps
Au J1939 MCS and Optional Cables
|
Au J1939 MCS
Part #:MCSJ1939-001 Price: $260 USD
Au J1939 MCS User Manual
|
 |
6-wire CAN/J1708 Cable for DB9 Male Connector
Part #: CBL-CAN-485-01 Price: $13.99 USD
|
 |
Au J1939/J1708 Combo Cable with DB9 Female Connector and 9-way green round threaded plug
Part #:CBL-CAN-485-03G Price: $45 USD
|
 |
Au Y cable with two 9-way black connectors and a DB9 female connector, twisted wires, 48 inch length.
Part #:CBL-CAN-06-DB9 Price: $85 USD
Data Sheet for CBL-CAN-06-DB9
|
 |
Au Y cable with two 9-way green connectors and a DB9 female connector, 48 inch length.
Part #:CBL-CAN-06G-DB9 Price: $85 USD
Data Sheet for CBL-CAN-06G-DB9
|
 |
USB to RS232 Converter Cable
Part #: CBL-USB-232
Price: $15.99 USD |
 |
RS232 Serial Extension Cable
Part #: CBL-RS232-01
Price: $8.99 USD
|
 |
Wall Mount AC/DC Power Supply - Positive Center
Part#: PWR-912V-CP Price: $14.99 (USD)
|
