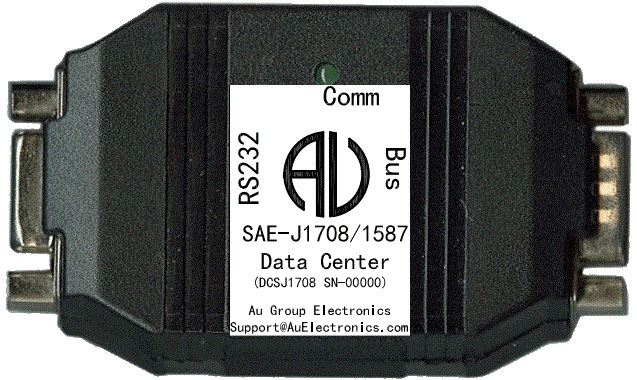

Four editions of Au SAE J1708/J1587 Data Center System
Note: All orders of DCSJ1708-001 and DCSJ1708-002 will be upgraded to DCSJ1708-003
J1708/J1587 Data Center Value Package edition, output with Individual PID Part#: DCSJ1708-001        Price: $99.99 (USD)
J1708 Data Center Value Package edition output with PID sentence Part#: DCSJ1708-002        Price: $99.99 (USD)
J1708 Data Center Basic Edition output with both individual PID and PID sentence Part#: DCSJ1708-003        Price: $99.99 (USD)
J1708 Data Center Premium edition output with both individual PID and PID sentence, includes idle bubble Part#: DCSJ1708-004        Price: $1999.99 (USD)
1 year support and minor upgrades for Au J1708 Data Center System Service#: SVS-DCS-J1708        Price: $200.00 (USD)

Optional Accessories for Au J1708 Data Center System

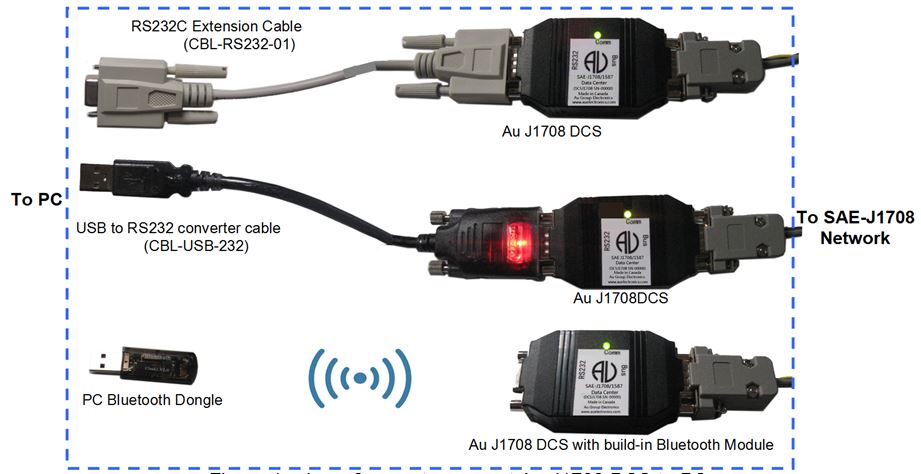

	6-wire CAN/J1708 Cable for DB9 Male Connector Part #: CBL-CAN-485-01      Price: $13.99 USD
	USB to RS232 converter cable Part #: CBL-USB-232        Price: $15.99 USD
	RS232 serial extension cable Part #: CBL-RS232-01        Price: $8.99 USD
	CAN /J1939/J1708 cable with a DB9 female connector and a green 9-way round threaded plug Part #: CBL-CAN-485-03G        Price: $40.00 USD
	SAE J1708 / J1587 Diagnostic Cable with Deutsch HD10 6-way plug and DB9 9-pin female connector Part #: CBL-J1708-01        Price: $48.00 USD
	Au J1708/CAN cable with a DB9 female connector and double SAE J-Bus connectors. Part #:CBL-CAN-485-03GD       Price: $85 USD

Au J1708 Data Center License Upgrades

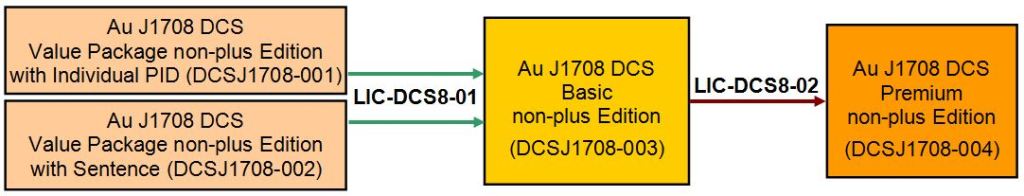

License upgrading procedure for the 4 editions of SAE J1708/J1587 Data Center is summarized here:
Upgrade Au J1708 DCS from Value Package edition to Basic Edition Item #: LIC-DCS8-001      Price: $20.00 (USD)
Upgrade Au J1708 DCS from Basic Edition to Premium edition Item #: LIC-DCS8-002        Price: $1000.00 (USD)

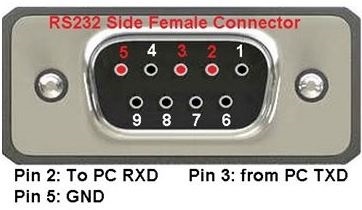

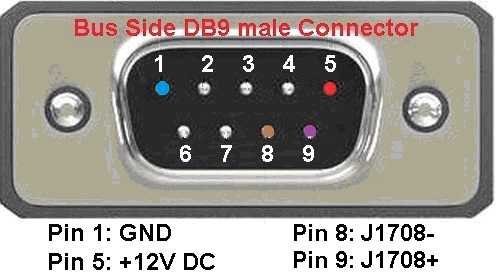

Major Hardware Features

Au J1708 DCS Command

Au J1708 DCS can be configured to break down received data from J1708 network into 3 format:

• Receive Complete J1708 sentence (RXD)
• Receive Incomplete J1708 Sentence (RIS)
• Receive Individual PID (RIP)

Au J1708 DCS can also be configured to transmit data to J1708 network in 4 format:

• Transmit Freedom format data (TFR)
• Transmit complete J1708 Sentence (TXD)
• Transmit Incomplete J1708 Sentence(TIS)
• Transmit Individual PID (TIP)

Symbol	Name	Description of function	Example
:	Colon	Transmit Individual PID (TIP )	AT :>80 F7 04 2F 7F 89 00*8F
		Receive Individual PID (RIP)	:>80 B7 02 FF FF*83
#	Number / Pound sign	Transmit complete J1708 Sentence (TXD)	AT #13>80 B7 C0 00 B8 3D 0A 55 00 5C 0A BE 40 06 54 0A 5B 0A 88*85
		Receive Complete J1708 sentence (RXD)	#07>80 5C FF BE FF FF 69*D4
?	Question mark	Transmit Incomplete J1708 Sentence(TIS)	AT ?0A>80 5C 0A BE 40 06 54 0A 5B FF*49
		Receive Incomplete J1708 Sentence (RIS)	?0A>80 5C 0A BE 40 06 54 0A 5B FF*49
T	Letter T	Time Stamp	T00000271
AT	AT command	Letter AT followed by space	AT J1708BUS=ON

Au J1708 DCS output with Individual PID (DCSJ1708-001):

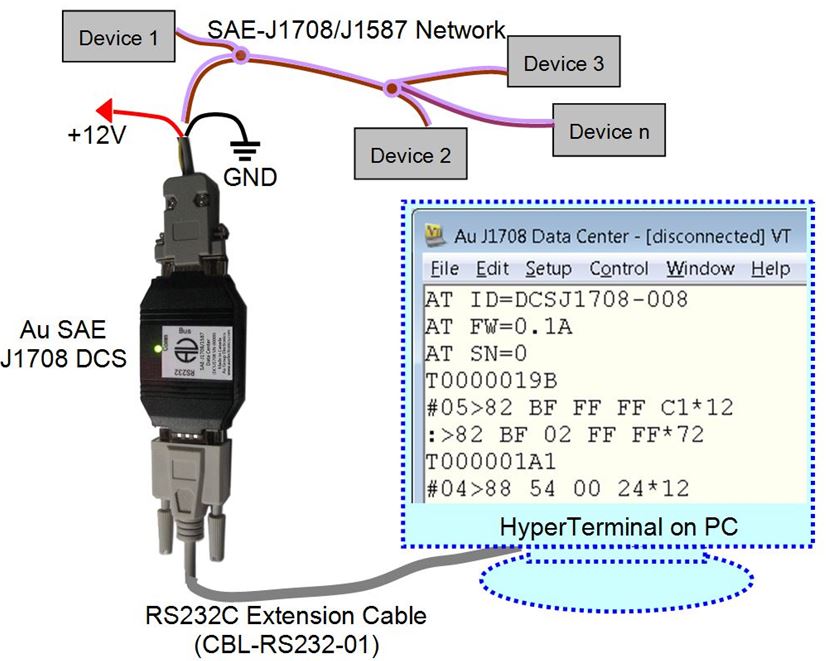

DCSJ1708-001 will receive completed sentence from J1708/J1587, J1708/J1922 network, translate them to ASCII string and output ASCII string in an Individual PID format on RS232 side:

Output Format:
:>MID PID n a*checksum\r\n

Note:

< CR > < LF > doesn't display on many web browser, we use "\r\n" represent the "carriage return and line feed".

:> indicates the start of a Individual PID sentence

MID Message Identification

PID Parameter Identification

n data length, Number of parameter data characters

a data

*checksum checksum, the checksum calculation starts from : ends on * with both characters included, all space characters " " in-between are also included.

\r\n carriage return and line feed, indicates the end of an individual PID sentence.

Output Example:
:>80 5C 01 FF*31\r\n
:>80 BE 02 FF FF*75\r\n
:>80 54 01 FF*40\r\n
:>80 5B 01 FF*32\r\n
:>80 F4 04 80 96 98 00*B0\r\n

Au J1708 DCS output with PID sentence(DCSJ1708-02):

DCSJ1708-002 will receive completed sentence from J1708/J1587, J1708/J1922 network, and output ASCII string in a sentence on RS232 side. Each sentence will include one MID, one or more PIDs.

Output Format:
#n>MID PID1 a1... PID2 a2 ... PID3 n3 a3 b3..Checksum*Sentence check sum\r\n

Note:

# indicates the start of a complete J1708 Sentence.

n overall data length between > and * .

MID Message Identification

PID Parameter Identification

nx data length for each PID.

a data

checksum the checksum calculation starts from > ends on the the checksum.

*sentence check sum the checksum calculation starts from # ends on * with both characters included, all space characters " " in-between are also included.

\r\n carriage return and line feed, indicates the end of an individual PID sentence.

Output Example:
#04>82 C2 00 BC*ED
#0F>88 31 00 2C C0 75 ED 76 EC A8 48 A7 54 EE BE*62
#11>80 B7 A5 AB B8 13 EE 5C ED BE 25 D2 54 ED 5B ED 39*0E
#14>82 2C C0 B1 C6 2A 2F FC 78 ED A2 33 30 A3 33 30 BF 29 D2 9C*A8


Au J1708 DCS output with both individual PID and PID sentence (DCSJ1708-003):

DCSJ1708-003 will receive completed sentence from J1708/J1587, J1708/J1922 network, and the output ASCII string can be set in either individual PID or in a PID sentence or both on RS232 side.

Output Format:
:>MID PID n a*checksum\r\n
#n>MID PID1 a1... PID2 a2 ... PID3 n3 a3 b3..Checksum*Sentence check sum\r\n

Output Example:
#0A>80 B7 FF FF 5C FF BE FF FF B4*D2
:>80 B7 02 FF FF*83
:>80 5C 01 FF*31
:>80 BE 02 FF FF*75
#07>80 5C FF BE FF FF 69*D4


Au J1708 DCS output with both individual PID and PID sentence includes idle bubble (DCSJ1708-004):

DCSJ1708-004 will receive completed and incomplete sentence from J1708/J1587, J1708/J1922 network, and the output ASCII string can be set in either individual PID or in a PID sentence or both on RS232 side.

DCSJ1708-004 can generate 1 time idle bubble for testing purpose, "Idle Bubble Time" can be set from 1 ms to 10 seconds

DCSJ1708-004 is able to transmit incomplete sentence for test purpose only.

Output Format:
?n MID PID data1 ... datan PID Data1 ... Datan *checksum\r\n

? Transmit incomplete sentence, for test purpose only.

n data length, Number of parameter data characters

MID Message Identification

PID Parameter Identification

*check sum the checksum calculation starts from ? ends on * with both characters included, all space characters " " in-between are also included.

\r\n carriage return and line feed, indicates the end of an individual PID sentence.

Output Example:
?80 5C 0A BE 40 06 54 0A 5B FF*49
