Question 6 - Can BB0703 (PICkit 2) work with board designed for ICD2?

The Au Group Electronics BB0703 can work directly on target board designed for ICD2 with a RJ12 6-pin reverse cable (Part#:CBL-RJ12-RVS).

Note: The BB0703 (PICkit 2) is designed based on the Microchip-recommended-schematic. So the BB0703 (PICKit2) RJ12-Connector ICSP- pinout-sequence is reversed comparing with ICD2.

The following table (table 1) shows the RJ12 connector pin-out of Microchip ICD 2 and BB0703 (PICkit 2):

Table 1

Pin number
 MPLAB ICD2
RJ12 Connector Pin-out Signal 		BB0703 (PICkit 2)
RJ12 connector Pin-out signal
1
Not used
MCLR/Vpp
2
PGC
VDD
3
PGD
Ground
4
Ground
PGD
5
VDD
PGC
6
MCLR/Vpp
Auxiliary

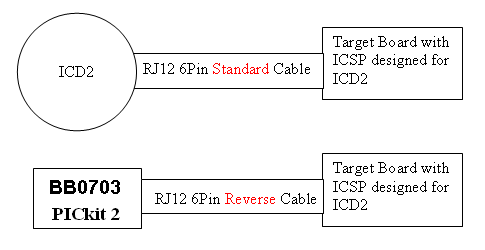

The reversed signal doesn't prevent BB0703 from being compatible with ICD 2, a RJ12 6-pin reversed cable can be used to connect BB0703 with any target board designed for ICD2 (as show in Figure 1).

Figure 1

Both RJ12 6-pin standard cable (Part#:CBL-RJ12-STD) and RJ12 6-pin reverse cable (Part#:CBL-RJ12-RVS) are available here at AU group Electronics.

Since Jan-2008, the RJ12 6-pin reverse cable has been added as a standard equipment in the BB0703 system.
